Case of 2 to 8 NEST BioFactory™ Cell Culture Systems
Product details:
Nest BioFactory™ Systems are compact, multi-layer, single-use cell culture systems designed for easy scale-up cell culture applications, such as production of vaccines, monoclonal antibodies or pharmaceuticals. Versatile, easy-to-use systems for small scale research or commercial production with reduced contamination risk. Narrow mouth caps available for tubing solutions. It is made from USP Class VI grade polystyrene material.
Features:
· Temperature Range: Approx. -86 to+64℃
· Sterilized by E-Beam SAL = 10-6
· Nonpyrogenic
· Double-layer sterile bag
· TC treated , good for cell attachment and growth
· Clear lot number for batch traceability
· Ultrasonic welding without extrinsic ingredients. Excellent welding line design can avoid producing particles during welding and make the Biofactoy™ stronger.
· Vent caps with 0.22um hydrophobic filters for gas exchange without contamination.
· Wide mouth is applicable to pour culture medium directly. Narrow mouth is applicable to operate with the aseptic pipeline.
· Growth kinetics are the same as cells grow in the cell culture flasks. Applicable to large-scale culture adherent cells.
· Large growing area. Just a single operation, you can cultivate a large number of cells and reduce contamination risk.
· Applicable to automatic machine. Standardize operations to reduce batch differences.
| SKU# | Layer/chamber | Cap Style |
Cultivation area
（cm²）
|
/case
|
NEST SKU#
|
| LS0070 | 1 | 2 Wide Vent Caps |
647
|
8
|
771001
|
| LS0071 | 2 | 2 Wide Vent Caps |
1279
|
8
|
771101
|

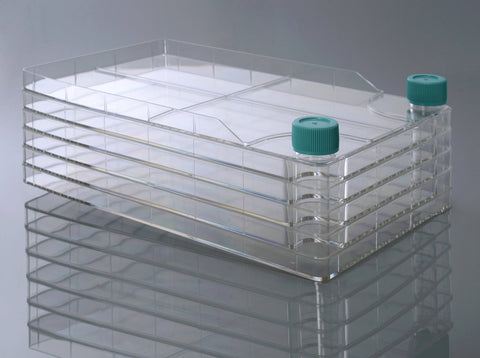

| LS0072 | 5 | 2 Wide Vent Caps |
3175
|
4
|
771204
|

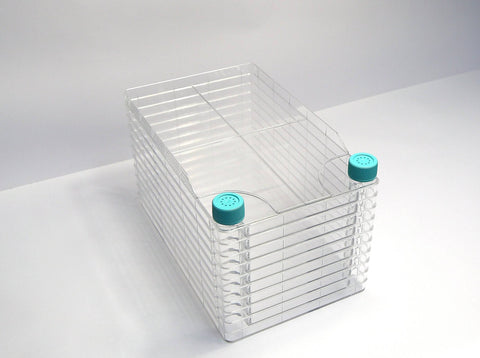

| LS0073 | 10 | 2 Wide Vent Caps |
6335
|
6
|
771302
|
| LS0074 | 40 | 2 Wide Vent Caps |
25295
|
2
|
771403
|
| LS0075 | 1 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap |
647
|
8
|
772001
|

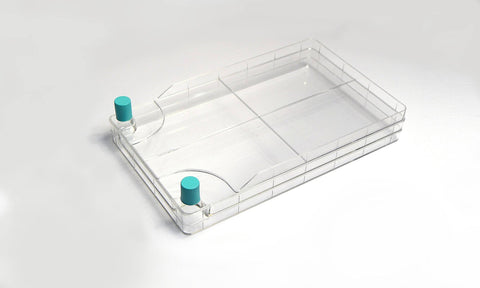

| LS0076 | 2 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap |
1279
|
8
|
772101
|
| LS0077 | 5 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap |
3175
|
4
|
772204
|
| LS0078 | 10 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap |
6335
|
6
|
772302
|

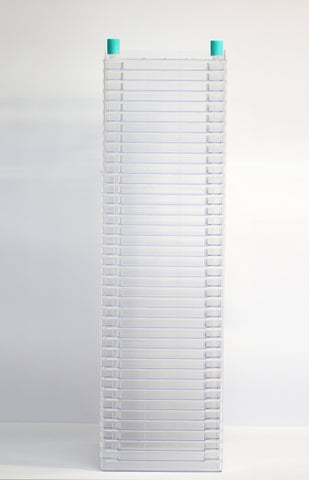

| LS0079 | 40 | 1 Narrow Vent Cap + 1Narrow Plug Seal Cap |
25295
|
2
|
772403
|
| LS0080 | 1 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap | 647
|
8 | 773001
|
| LS0081 | 2 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap | 1279
|
8
|
773101
|
| LS0082 | 5 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap |
3175
|
4
|
773204
|
| LS0083 | 10 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap |
6335
|
6
|
773302
|
| LS0084 | 40 | 1 Wide Vent Cap & 1 Narrow Plug Seal Cap |
25295
|
2
|
773403
|
Shipping information
| SKU# | Dimensions LxWxH (inch) | Weight (lb) |
| LS0070 | 23x16x9 | 11 |
| LS0071 | 23x16x9 | 15 |
| LS0072 | 23x16x9 | 18 |
| LS0073 | 22x19x29 | 35 |
| LS0074 | 22x17x31 | 44 |
| LS0075 | 23x16x9 | 11 |
| LS0076 | 23x16x9 | 15 |
| LS0077 | 23x16x9 | 18 |
| LS0078 | 22x19x29 | 35 |
| LS0079 | 22x17x31 | 44 |
| LS0080 | 23x16x9 | 11 |
| LS0081 | 23x16x9 | 15 |
| LS0082 | 23x16x9 | 18 |
| LS0083 | 22x19x29 | 35 |
| LS0084 | 22x17x31 | 44 |
Use Guidelines
For user manual, please view the following demo video of the NEST BioFactory™ Cell Culture Systems.
