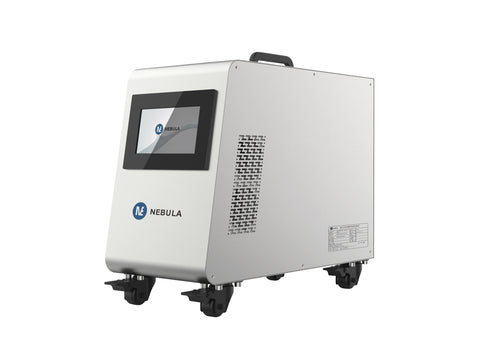

Nebula Power Battery Pack Cell Balanced Repair System BAT-NECBR-240505PT-V003-US
SKU: BAT-NECBR-240505PT-V003-US
Nebula Power Battery Pack Cell Balanced Repair System BAT-NECBR-240505PT-V003-US
Product details:
For the defect of poor anti-overcharge capability of the Li-ion battery packs, the batteries in various strings will show great differences after working for a certain period due to the inconsistency of cells and working temperatures, which will tremendously influence the battery’s service life and the system security. The cell balanced repair system is mainly applied to charge-discharge testing, cycle testing, cell performance, functional testing of high-power battery, such as EV modules and energy storage battery modules etc. This system can avoid deterioration of imbalanced trend and prolong the battery’s service life by adopting charge-discharge unit to conduct cycling test.
About Nebula
Nebula is a global leader in advanced battery testing equipment, renowned for its precision, reliability, and cutting-edge technology. Our comprehensive product range supports a wide array of applications, including battery R&D, manufacturing automation, and energy storage systems. With a dedicated after-sales service team based in North America, we provide direct, localized support to ensure seamless operation and customer satisfaction. Nebula’s commitment to innovation and quality positions us at the forefront of the industry, empowering clients worldwide to achieve exceptional performance and sustainability goals.
MSE Supplies is an authorized distributor of Nebula in the USA. The product figure is for reference only. The actual product may look different based on product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Specifications:
| Strings of battery packs | 24 strings |
| Max. charge current | 5A (automatically limited to 3A after prolonged loading) |
| Max. discharge current | 5A (automatically limited to 3A after prolonged loading) |
| Voltage output range | 1500mV-4500mV |
| Voltage output accuracy | ±(0.05%+2) mV |
| Voltage testing range | 100mV-4800mV |
| Voltage testing accuracy | ±(0.05%+2) mV |
| Output range of charge current | 100mA-5000mA (support pulse type, automatically limited to 3A after prolonged loading) |
| Output range of discharge current | 1mA-5000mA (support pulse type, automatically limited to 3A after prolonged loading) |
| Monitor display | 7 inch |
| Central processing unit (CPU) | Cortex A9, 1.2GHz |
| Memory (RAM) | 1GB |
| Hard disk (SD) | 32GB |
| Input power of host machine | AC220V±10% /50/60Hz,1000W |
| Module power | 100W/module |
| Standard configuration | 24S |
| Dimension (W*D*H) | 260*550*505 mm |
| Weight | 35kg |
| Working environment | Avoid high temperature, high humidity, vibrations, shocks, metal dust and welding spatters |
