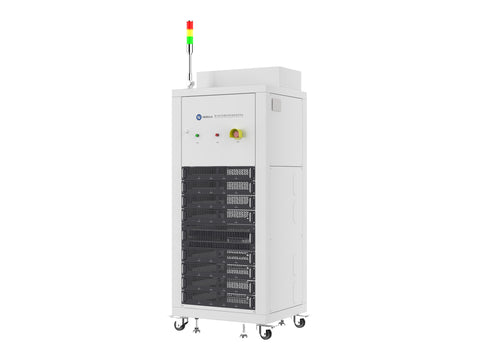

Nebula Cell Energy Feedback Charge-discharge Test System BAT-NEEFLCT-06120LX-V001
SKU: BAT-NEEFLCT-06120LX-V001
Nebula Cell Energy Feedback Charge-discharge Test System BAT-NEEFLCT-06120LX-V001
Product details:
BAT-NEEFLCT-06120LX-V001 is a regenerative type power processing system controlled by computer. It is mainly applied to electrical performance test for high-power high-energy secondary batteries, EV battery modules and energy storage power batteries, such as the charge-discharge cycles test, learning test, cell performance test, battery capacity test, battery internal resistance test, battery deep discharge test and battery consistency test etc.
About Nebula
Nebula is a global leader in advanced battery testing equipment, renowned for its precision, reliability, and cutting-edge technology. Our comprehensive product range supports a wide array of applications, including battery R&D, manufacturing automation, and energy storage systems. With a dedicated after-sales service team based in North America, we provide direct, localized support to ensure seamless operation and customer satisfaction. Nebula’s commitment to innovation and quality positions us at the forefront of the industry, empowering clients worldwide to achieve exceptional performance and sustainability goals.
MSE Supplies is an authorized distributor of Nebula in the USA. The product figure is for reference only. The actual product may look different based on product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Specifications:
| Noise | ≤75dB |
| Heat dissipation | Air forced cooling |
| Regenerative | Available. The discharge energy fed back to the power grid. |
| IP Rating | IP21 |
| Output line | 3.5m |
| Channel quantity | 32CH |
| Power Supply | 380VAC±15%, frequency of 50Hz/60HZ ±2Hz Three-phase five-wire, Whole equipment cabinet AC220V±10% /50-60Hz; A single chassis |
| Power factor | ≥0.99（Full load） |
| Total Harmonic Distortion(THD) | Conforms to GB/T 14549-1993 |
| Unexpected outage protection |
Available. Unexpected power outage will suspend the current steps, which will be automatically resumed after power is restored. |
| Voltage range (DC) | Charge: 0V-6V Discharge: 1V-6V(within 3m cable) 1.3V-6V(within 5m cable) |
| Voltage output accuracy | ±0.02% FS (10℃-40℃) |
| Voltage resolution | 0.1mV |
| Current range | ±120A |
| Min. current output | 30mA |
| Current resolution | 0.1mA |
| Current output accuracy | ±0.05% FS（10℃-40℃） |
| Power of a single channel (max. charge power) | 600W |
| External temperature measurement | -40℃-120℃——NTC（optional） -40℃-200℃——thermocouple （optional） |
| Dimension | 32-CH cabinet: W*D*H:700*600*1590 (mm） |
| Weight | 32-CH cabinet: 0.30t (300kg) |
| Charge discharge mode |
Constant voltage, constant current, constant power, constant current converting to constant voltage, constant load, current phase step, current ramp, pulse and current Note: Any steps can be |
