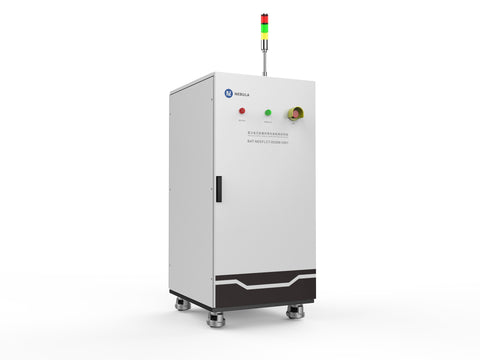

Nebula Cell Energy Feedback Charge-discharge Test System BAT-NEEFLCT-0560N-V001
SKU: BAT-NEEFLCT-0560N-V001
Nebula Cell Energy Feedback Charge-discharge Test System BAT-NEEFLCT-0560N-V001
Product details:
BAT-NEEFLCT-0560N-V001 is a computer-controlled energy regenerative power testing system. It is primarily used for testing the electrical performance of high-power, high-energy secondary batteries and energy storage batteries. Applications include battery cycle life testing, capacity testing, DC internal resistance testing, charge-discharge characteristic testing, deep discharge testing, battery consistency testing, and rate charge-discharge testing. The system enables integrated monitoring of charge-discharge data.
About Nebula
Nebula is a global leader in advanced battery testing equipment, renowned for its precision, reliability, and cutting-edge technology. Our comprehensive product range supports a wide array of applications, including battery R&D, manufacturing automation, and energy storage systems. With a dedicated after-sales service team based in North America, we provide direct, localized support to ensure seamless operation and customer satisfaction. Nebula’s commitment to innovation and quality positions us at the forefront of the industry, empowering clients worldwide to achieve exceptional performance and sustainability goals.
MSE Supplies is an authorized distributor of Nebula in the USA. The product figure is for reference only. The actual product may look different based on product configuration.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
Specifications:
| Noise | ≤75dB |
| Heat dissipation | Air forced cooling |
| Regenerative | Available. The discharge energy fed backtothe power grid. |
| IP Rating | IP20 |
| Output line | 3m |
| Channel quantity | 16channels |
| Power Supply | 380VAC±15% ,frequency of 50Hz/60HZ ±2Hz Three-phase five-wire |
| Power factor | ≥0.99（Full load） |
| Total Harmonic Distortion(THD) | Conforms to GB/T 14549-1993 |
| Unexpected outage protection |
Available. Unexpected power outage will suspend the current steps, which will be automatically resumed after power is restored. |
| Voltage range (DC) | Charge: 0V-5V Discharge:1.5V-5V |
| Voltage output accuracy | ±0.05% FS |
| Voltage resolution | 0.1mV |
| Current range | ±30A |
| Min. current output | 30mA |
| Current resolution | 0.1mA |
| Current output accuracy | ±0.05% FS |
| Power of a single channel (max. charge power) | 300W |
| External temperature measurement | -50℃-200℃ |
| Dimension | W*D*H:612*700*1300mm |
| Weight | 220kg |
| Charge discharge mode | Constant voltage, constant current, constant power, constant current converting to constant voltage, constant resistance, current ramp, voltage ramp, current ramp and pulse etc. Note: Any steps can be programmed to operate in any combination of operating modes. |
