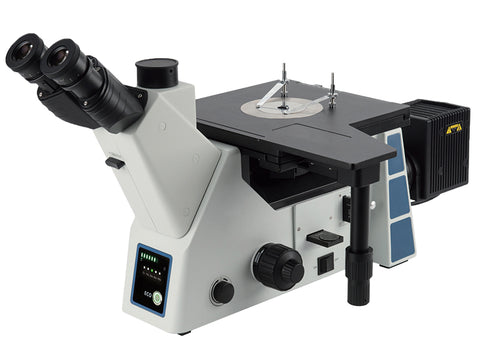

MSE PRO Trinocular Inverted Metallurgical Microscope (Bright Field)

MSE PRO Trinocular Inverted Metallurgical Microscope (Bright Field)

SKU: OM0033

  • £5,38600
  • Save £59900


MSE PRO™ Trinocular Inverted Metallurgical Microscope (Bright Field)

  • Comfortable and simple operation
  • Stable frame with outstanding design
  • Rackless mechanical stage
  • Front magnification display
  • Intelligent ECO system

Specifications:

Item

Specification

OM0033

Optical System

Infinite Color Corrected Optical System

Viewing Head

45 degree gemel trinocular tube, 360° rotatable, fixed eyepiece tube, interpupillary distance: 50-75mm, binocular: trinocular=100:0 or 0:100

Eyepiece

High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter

High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter and micrometer

High eye point wide field plan eyepiece PL15X/16mm, with adjustable diopter

Objective

Infinite Long Working Distance Plan Achromatic Metallurgical Objectives

5X/NA=0.15, WD=10.8mm

10X/NA=0.3, WD=12.2mm

20X/NA=0.45, WD=4.0mm

50X/NA=0.55, WD=7.9mm

100X/NA=0.8, WD=2.1mm

Infinite Long Working Distance Bright & Dark Field Plan Achromatic Metallurgical Objectives

5X/NA=0.15, WD=9.0mm

10X/NA=0.3, WD=9.0mm

20X/NA=0.45, WD=3.4mm

Infinite Long Working Distance Bright & Dark Field Semi-Apochromatic Metallurgical Objective

50X/NA=0.55, WD=7.5mm

100X/NA=0.8, WD=2.1mm

Nosepiece

Inward quintuple bright field nosepiece (with DIC slot), with built-in magnification sensor.

Stage

Three layers rackless stage, size: 240mm (W) * 250mm (L), moving range: 50* 50mm, with low-position handle knob on the right.

Microscope Body

Reflected frame. Low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm; with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display.

Power Adapter

External power adapter, input 100V-240V, output 15V/13.4A.

Illumination

Halogen light box, 12V/100W, with center set

Halogen light, 12V/100W

Polarizer and Analyzer

Polarizer and fixed analyzer

Polarizer and 360-degree rotatable analyzer

Stage Plates

Glass stage plate

Metal stage plate (kidney-shaped hole)

Metal stage plate (Center hole diameter 25mm)

Metal stage plate (Center hole diameter 12mm)

Filters

LBD color filter

Blue color filter (Φ32mm)

Green color filter (Φ32mm)

Yellow color filter (Φ32mm)

C-mount Adapter

0.35× C-mount adapter, focus adjustable

0.5× C-mount adapter, focus adjustable

0.65× C-mount adapter, focus adjustable

1× C-mount adapter, focus adjustable

Other Accessories

Other

DIC Kit

Electronic eyepiece connector

Internal hexagonal Spanner M3

Internal hexagonal Spanner M4

Note: ●Standard parts,  ○Optional parts
