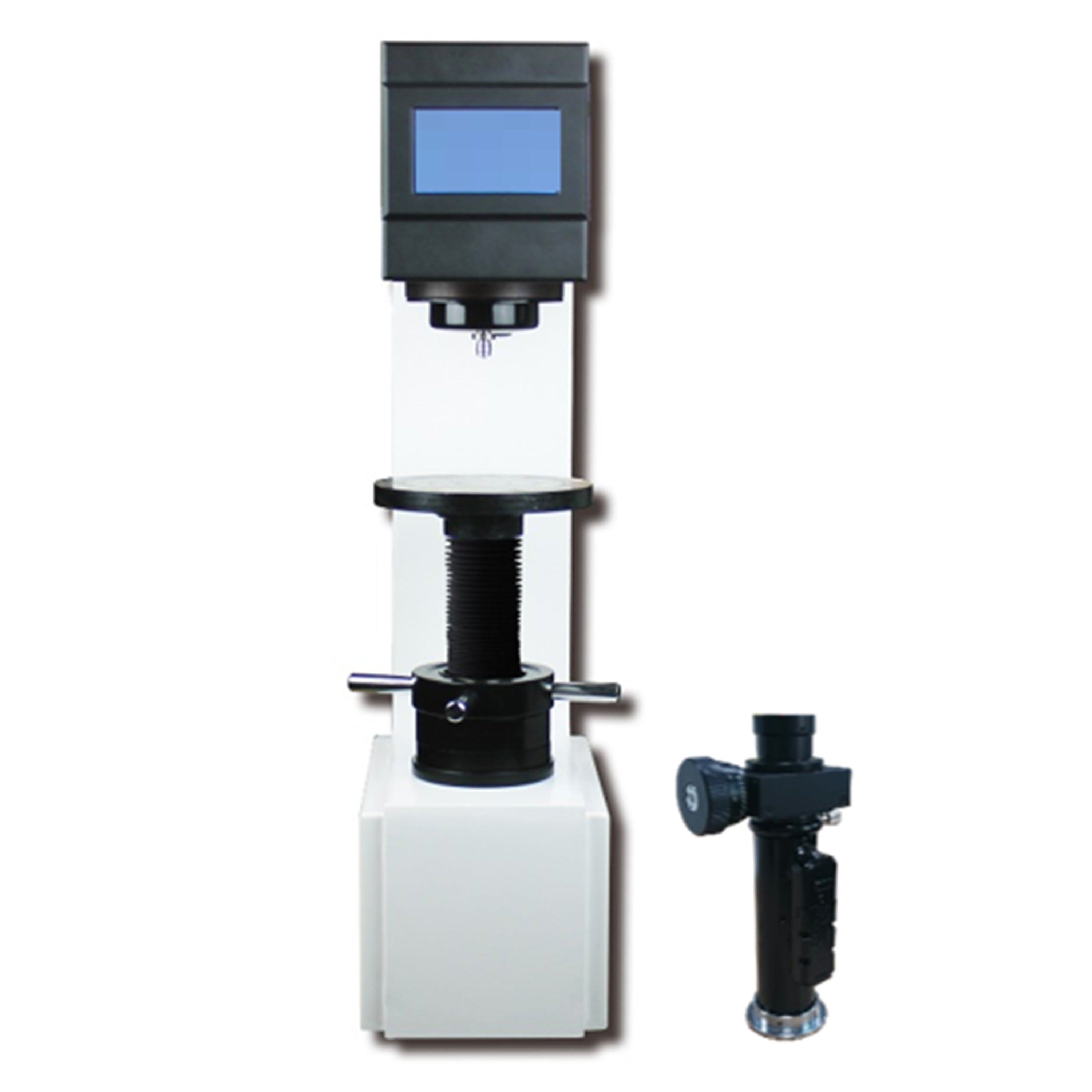

MSE PRO Touchscreen Electronic Brinell Hardness Tester with Manual Input
Introduction
The MSE PRO Touchscreen Electronic Brinell Hardness Tester with Manual Input is a high-precision system designed for reliable hardness testing of metals and large components. Featuring electronic load application with a closed-loop control system, it ensures excellent accuracy, repeatability, and stability across a wide test force range.
With a touchscreen interface, automatic loading control, and built-in hardness calculation, this tester simplifies the measurement process by allowing users to input indentation values directly without manual reference tables. It is ideal for industrial quality control, foundries, and metallurgical laboratories.
Key Features
- Electronic Closed-Loop Load Control – High-precision force application with excellent repeatability and stability
- Wide Test Force Range – Supports 10 levels from 62.5 kgf to 3000 kgf for diverse materials
- Touchscreen Interface – Intuitive operation with direct parameter selection and real-time display
- Automatic Hardness Calculation – Input indentation values (D1, D2) to instantly calculate hardness without lookup tables
- High Measurement Accuracy – Force accuracy up to ≤0.5% at higher loads for reliable results
- Integrated Optical System – Equipped with illuminated measuring microscope for clear indentation observation
- Flexible Sample Handling – Supports large specimens with high capacity and multiple anvils
Specification
| Parameter | Specification |
| Hardness Scale | HBW |
| Test Force Range | 62.5 kgf – 3000 kgf |
| Test Force Levels | 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000 kgf |
| Standards Compliance | ISO 6506, ASTM E10 |
| Force Accuracy | ≤1% (62.5–250 kgf), ≤0.5% (500–3000 kgf) |
| Measurement Resolution | 0.01 mm |
| Hardness Resolution | 0.1 HBW |
| Hardness Range | 3.18 – 653 HBW |
| Dwell Time | 0 – 99 s |
| Microscope Magnification | 20× |
| Maximum Sample Height | 230 mm |
| Throat Depth | 155 mm |
| Indenters | Tungsten carbide balls (2.5 mm, 5 mm, 10 mm) |
| Stage Types | Flat, V-type, and large anvils |
| Dimensions | 550 × 210 × 800 mm |
| Weight | ~110 kg |
| Power Supply | 110V, 60 Hz |
| Data Processing | Built-in calculation via manual input (D1, D2) |
MSE supplies offers various metallographic equipment, please contact us for more information.
