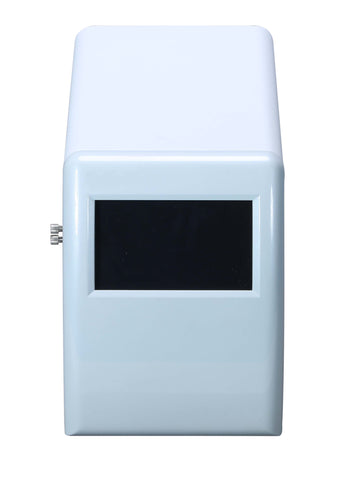

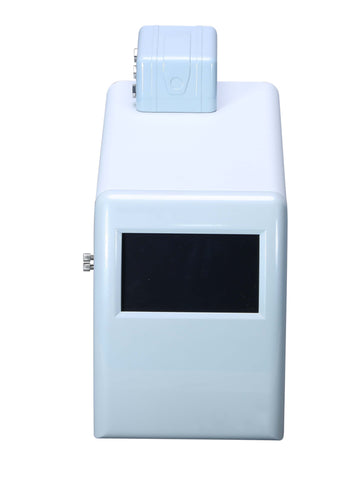

MSE PRO Total Organic Carbon Analyzer, UV Oxidation Method
MSE PRO™ Total Organic Carbon Analyzer, UV Oxidation Method
MSE Supplies offers a Total Organic Carbon Analyzer, which is using dual-wavelength ultraviolet oxidation and conductivity detection technology. The equipment is compact, lightweight, and easy to operate. It is suitable for the detection of pharmaceutical water, electronic-grade industrial water, pure water, and similar water sources. The MA0640 also can be used for online monitoring in the pharmaceutical industry's purified water systems, semiconductor industry's ultrapure water preparation systems, chip manufacturing processes, power plant deionized water preparation processes, etc,.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Features of MSE PRO™ Total Organic Carbon Analyzer, UV Oxidation Method
-
UV oxidation using a UV lamp, eliminating the need to add acid, gas, or a catalyst, significantly reducing experimental and maintenance costs.
-
Automatic sample introduction with one-button setup, which ensure no sample contamination and no harm to the operator or the environment.
-
7-inch touchscreen with a user-friendly interface makes it easy to operate and read test data.
-
Compliance with FDA-21 CFR Part 11 requirements, as well as USP, EP, JP, and ChP standards.
-
An auto-sampler is optional, depending on different experimental requirements.
-
Online and offline modes can be easily switched (only available in model MA0640).
-
Large 8GB storage capacity with no restrictions on data or time.
-
Quick testing, with each analysis taking less than 3 minutes.
-
All historical records can be traced by searching the test date.
-
Data can be retrieved and saved directly to a USB drive.
-
Equipped with a Bluetooth printer for quick and easy data printing.
-
Modular design for easy and quick installation and maintenance.
Please Contact Us for Available Model and Specifications.
Technical Specifications
| SKU# | MA0639 (Offline) | MA0640 (Online) |
| Detection range | 0.001-1.5mg/L (ppm) | |
| Detection limit | 1ppb | |
| Max tolerance | ±5% | |
| Analysis time | 3 mins | |
| Response time | within 10 mins | |
| Sample temperature | 1-95℃ | |
| Environment temperature | 10-40℃ with temperature change ±5℃/d | |
| Sample flow speed | 3mL/min | |
| Relative humidity | ≤85% | |
| Repeatability tolerance | ≤3% | |
| Drifting | ±5% | |
| Power | AC 110V | |
| Power | 100W | |
| Dimension | 440*220*300mm | |
