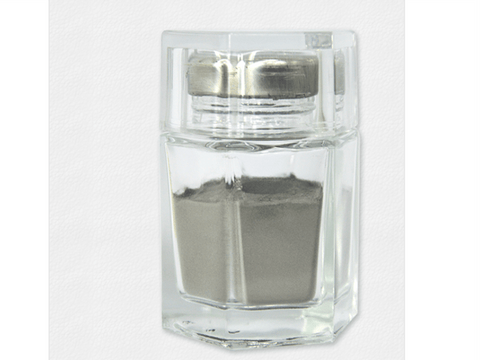

MSE PRO Ti-6Al-4V (TC4) Titanium Based Metal Powder for Additive Manufacturing (3D Printing)
Product details:
Ti-6Al-4V, also sometimes called TC4 or Ti64, is an alpha-beta titanium alloy with a high strength-to-weight ratio and excellent corrosion resistance. It is one of the most commonly used titanium alloys and is applied in a wide range of applications where low density and excellent corrosion resistance are necessary such as e.g. aerospace industry and biomechanical applications (implants and prostheses).
SKU#:
MP0190 (particle size 0~25um)
MP0191 (particle size 0~45um)
MP0192 (particle size 15~45um)
MP0193 (particle size 45~105um)
Chemical Composition:
|
Chemical Composition (wt%) |
||||||||||
|
Item |
Fe |
C |
H |
Si |
Al |
V |
Mo |
Sn |
Zr |
Ti |
|
TC4 |
≤0.3 |
0.08 |
≤0.015 |
- |
5.5~6.75 |
3.5~4.6 |
- |
- |
- |
Bal. |
Oxygen≤1300 ppm; Nitrogen≤300 ppm
Particle Size (This size is D50):
<45μm, <53μm, 15-45μm, 15-53μm, 45-150μm. (A variety of particle size metal powder can be customized upon request)
Applications:
Powder can be used in laser/electron beam additive manufacturing (SLM/EBM), powder metallurgy (PM), spraying and other processes. Powder can be used in the manufacture of aerospace parts and components, repair work of aero engine blades, and medical equipment.
Applicable Equipment:
Powder can be used in various types of metal 3D printers, including Renishaw from the UK, EOS (EOSINT M series) from Germany, Concept Laser, 3D systems from the United States and many other laser melting equipment.
Minimum Order Quantity:
1kg
Note:
The metal powder price varies due to the particle size range and the raw material price.
