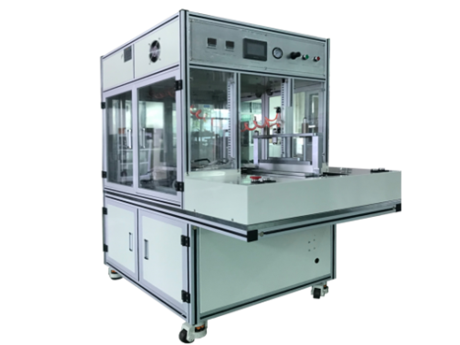

MSE PRO Three-in-one Battery Edge Cutting, Folding and Heating Machine
SKU: BR0459
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
MSE PRO™ Three-in-one Battery Edge Cutting, Folding and Heating Machine
This MSE PRO™ battery machine offers a three in one solution for cutting, folding, and heating polymer battery edges. The battery is loaded onto the synchronous belt in the feeding area and is automatically fed to the cutting, clamping, hotting, and taking positions along the belt. At the cutting position, excess edge material is trimmed, and at the clamping position, the battery is folded and heated using the hot copper die channel. Finally, at the discharging position, the battery can be manually removed from the forming fixture mounted on the chain.
Equipment specifications are listed for references, more details and customizable design are available upon request.
Specifications:
| SKU | BR0459 |
| Source voltage | AC110V 60Hz, Single phase. Customizable according to country request |
| Power | 1.8KW |
| Warranty | One year limited warranty with lifetime support |
| Compressed air | 0.68MPa, 5L/min |
| Cutter type | Circular knife |
| Suitable battery size | Length 15-300mm, Width 12-250mm, Thickness 3-12mm |
| Edge folding thickness | 0.19-0.3mm |
| Edge cutting accuracy | ±0.10 mm |
| Parallelism between cutter | 0.05mm |
| Knife hardness | HRC≥58° |
| Cutter knife life | 1 000 000times with grinding |
| Hotting temperature | RT-200℃, |
| Parallelism of copper mold | 0.1mm |
| Dimension (L*W*H) | 1530*900*1585mm |
| Weight | 300kg |
