MSE PRO Semi-Auto Battery Electrode Stacking Machine Z type for Pouch Cell Production
SKU: BR0421

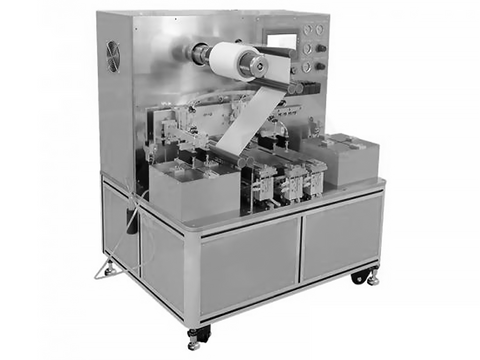

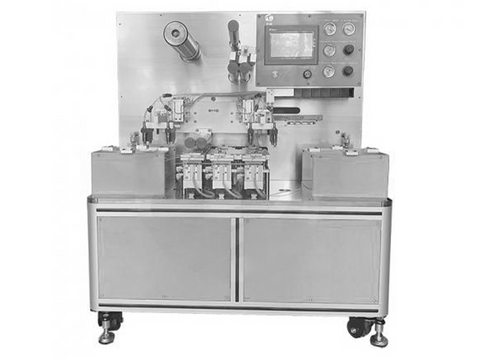

MSE PRO™ Semi-Auto Battery Electrode Stacking Machine Z type for Pouch Cell Production
MSE Supplies offers a semi-automatic lithium ion battery electrode stacking machine with stable, repeatable and precise performance. The device is suitable for lithium battery Z-type lamination process. This machine allows for manual loading, as well as automatic electrode position correction and stacking. It features a single cantilever design, with automatic control of roll separator materials and correction. It is widely used for pouch cell production in research lab and pilot line.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
| SKU | BR0421 |
| Stacking Type | Z-Type |
| Stacking Uniformity | ≤+/-0.3mm |
| Stacking Range |
Min. L36mm x W36mm Max. L200mm x W200mm |
| Stacking Thickness | Max. 30mm |
| Stacking Layer | Max. 500, adjustable |
| Separator Roller Diameter | Max. 250mm |
| Separator Core Diameter | 3" roll core with air shaft clamping |
| Voltage | 110V 60Hz |
| Power | 600W |
| Compressed Air Source | 0.6-0.8MPa |
| Outer Dimensions | L1000mm x W780mm x H1050mm |
| Net Weight | 285kg |
| Warranty | One year limited warranty with lifetime product support. |
