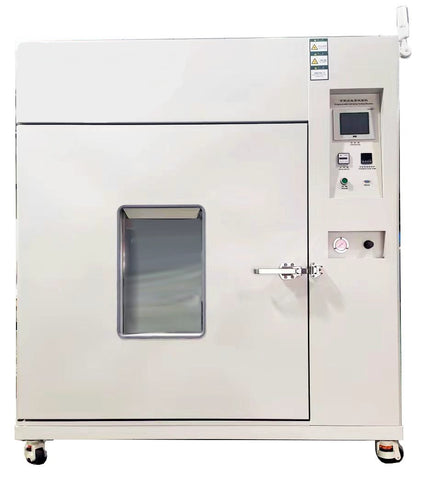

MSE PRO Salt Spray Machine
SKU: MA0065455-110V
MSE PRO™ Salt Spray Machine
This test equipment simulates corrosion test in artificial environment and is used to test the comparative quality of metal materials with or without corrosion protection; anticorrosion test suitable for rapid analysis of discontinuity, hole and damage in organic and inorganic coatings, and, for quality control, can compare between samples with the same coating; salt spray test is especially suitable for detecting discontinuity in some metals, organic, anodic oxidation and conversion coatings, such as small holes and other defects; among which
- Neutral Salt spray test (NSS) is applicable to (metals and their alloys, metal coatings (anode and cathode), conversion coatings, anodizing coatings, organic coatings on metal materials);
- AASS is especially suitable for decorative plating of copper + nickel + chromium, or nickel + chromium; also found that it is suitable for anode plating of test aluminum.
- Copper accelerated acetate spray test (CASS) is suitable for decorative plating of copper + nickel + chromium, or nickel + chromium; also found that it is suitable for anode plating of test aluminum.
Specifications:
| Product name | Salt spray test chamber |
| Product model | MA0065455 |
| Test sample limit | This test equipment is prohibited by: Test or storage of samples of flammable, explosive and volatile substances Test or storage of test samples of corrosive substances Testing or storage of biological samples Test or storage of samples of strong electromagnetic emission sources Test and storage of test samples of radioactive substances Test and storage of highly toxic substance samples Testing and storage of samples that may produce highly toxic substances during testing or storage |
| Volume, size, and weight | |
| Internal capacity | 3m3 does not include the volume of the top inclined roof |

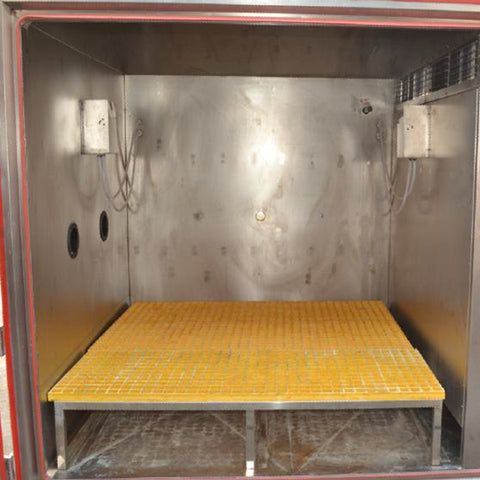

| Inner chamber size (mm) | 1500x1500x1300 WxHxD (excluding inclined top height) Note: The top inclined top Angle is 115~120°, and the height of the inclined top is 400mm |
| External size (mm) | About 2100x2300x1600 WxHxD Note: The size of the salt tank and the fog discharge pipe exceed the machine size, the fog discharge pipe is 50mm above the machine, and the salt tank is external |
| Salt tank size (mm) | About Φ760xH 930, capacity 300L |
| Net weight | About 1,500 kg |
| Major performance index | |
| Test environmental conditions | Ambient temperature + 25℃, relative humidity 85% RH, no sample in test chamber (unless otherwise noted) |
| Laboratory temperature range | RT ~ 60℃, adjustable |
| Saturating barrel temperature range | RT ~ 70℃, adjustable |
| Temperature control performance | Temperature deviation: ± 2.0℃ Temperature uniformity:≤ 2℃ Temperature fluctuation degree: ± 0.5℃ |
| Laboratory heating rate | RT→+60℃≤60 min |
| Saturating barrel warming rate | RT→+70℃≤60 min |
| Condition of experiment | The NSS or ASS test temperature is 35℃, the saturation barrel temperature is 47℃, the spray time is 1min~999h, and the storage time is 1min~999h; The CASS test temperature is 50℃, the saturation barrel temperature is 63℃, the spray time is 1min~999h adjustable, the storage time is 1min~999h adjustable; |
| Salt spray deposition | 1~2ml/ (h·80cm2) (collect for at least 16 hours and take the average value) |
| Spray pressure | 70～170Kpa |
| Meet the test method | 1. GB/T2423.17-2008/IEC 60068-2-11-1981 Electrical and electronic products environmental test- -Part 2: Test methods Test the Ka salt spray 2. ASTM.B117-2009, Standard experimental method for operating the salt spray test machine 3. ASTM _ B 368-09 Standard test method for copper acetate-salt spray test (CASS test) 4. JIS H8502-1999 Test method for coating corrosion resistance 5. GB T10125-2021 / ISO9227:2017 salt spray test 6. GBT 20121-2006 / ISO11474-1998 Corrosion test of metals and alloys. Outdoor acceleration test under intermittent salt spray-scab test 7. GB/T12967.3-2008Detection methods for anodized film of aluminum and aluminum alloy-Part 3: Copper accelerated acetate salt spray test (CASS test) 8. GB-T5170.8-2008 Inspection method for electrical and electronic products environmental test equipment-salt spray test equipment 9. GB-T10587-2006 Technical conditions of salt spray test chamber |
| Working noise | Less than 70db (A) (measured at 1m away from the chamber and 1.2 meters above the ground) |
