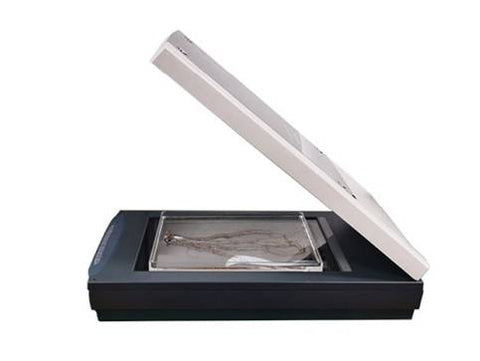

MSE PRO Root Scanner
SKU: BB2700
MSE PRO™ Root Scanner
The MSE PRO Root Scanner is a cutting-edge tool that utilizes image recognition technology for precise root analysis after roots are washed in vitro. Designed for researchers and agricultural professionals, it delivers accurate data while enhancing operational efficiency and reducing labor intensity. With a clear interface and modular design, it simplifies the root measurement process, making it more accessible and user-friendly.
- Advanced Image Recognition Technology: Delivers high-precision root analysis for scientific accuracy and repeatable results.
- User-Friendly Interface: Modular and intuitive design ensures a smooth learning curve and efficient workflow.
- Enhanced Work Efficiency: Speeds up the analysis process, helping users save time and reduce manual effort.
- Cost-Effective Solution: Reduces labor costs and streamlines the root analysis process in lab environments.
- Reliable and Consistent Results: Provides highly accurate data, making it ideal for research, breeding programs, and academic studies.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Root Scanners. Please contact us for more information.
Specifications:
| SKU# | BB2700 |
| Power Supply | 100-240V |
| Optional Accessory | Computer |
| Net Weight | 8 Kg |
Overall Anaiysis Parameter:
| Root lip | Number the total number of root tips, equal to the number of termination points | |
| Range | 0-1000 | |
| Accuracy | Error <5% | |
| Root System | Length: total root system length, including main root and secondary roots | |
| Range | 0-10000mm | |
| Accuracy | Error <3.65% | |
| Average Diameter: the average diamter of the root system | ||
| Range | 0-20mm | |
| Accuracy | Error <0.04% | |
| Projected Area: the projected area of the root system as a whole | ||
| Range | 0-200000mm2 | |
| Accuracy | Error <4.02% | |
| Surface Area: the overall surface area | ||
| Range | 0-1000000mm2 | |
| Accuracy | Error <3.75% | |
| Volume: overall volume | ||
| Range | 0-2000000000mm3 | |
| Accuracy | Error <3.82% | |
Topological Analysis Parameter (requires relatively complete root system):
| Quantity: the sum of the number of roots at all levels | |
| Range | 0-100 |
| Number of Connections: the sum of the number of connections on the side roots at all levels | |
| Range | 0-100 |
| Length: the sum of the lengths of the lateral roots at all levels | |
| Range | 0-10000mm |
| Diameter the average diameter of each side root | |
| Range | 0-20mm |
| Surface Area: the sum of the surface area of each side root | |
| Range | 0-1000000mm2 |
| Volume: the sum of the volume of each side root | |
| Range | 0-2000000000mm2 |
| Projected Area: the sum of the projected area of each side root | |
| Range | 0-200000 mm2 |
