MSE PRO Pressure Jig and Load Sensor Kit for Lithium Metal Cell (Solid State Battery Split Cell and Pouch Cell) Testing

Pressure Jig and Load Sensor Kit for Lithium Metal Cell (Solid State Battery Split Cell and Pouch Cell) Testing

This pressure jig and load sensor kit is designed by MSE Supplies LLC for the development and testing of solid-state electrolyte materials, solid-state batteries and lithium metal batteries. It can be used under pressure for solid-state battery and lithium metal battery research and product quality control.

Product SKU#:

BR0216 - 5T sensor

BR0216 - 50kg sensor

Brand: MSE Supplies®

Specifications of pressure jig:

(Customized sizes are available upon request.)

• Plate outer diameter: 140 mm
• Plate thickness: 13 mm
• Screw & Nuts: M11 (Wrench included)
• Distance between two screws: 68 mm

Specifications of the 5T load sensor:

• Max. Load: 5 metric ton.
• Accuracy: +/-5 kg
• Power cord: 110V to 24V adapter included.
• Reading resolution: Kg

Specifications of the 5T load sensor:

• Max. Load: 50kg.
• Power cord: 110V to 24V adapter included.

The jig can be used to test: PEEK split cell test kit, 2"x4" size pouch cell or anything smaller than that.

For pouch cell testing, the PEEK pressing boards can be purchased with different sizes.

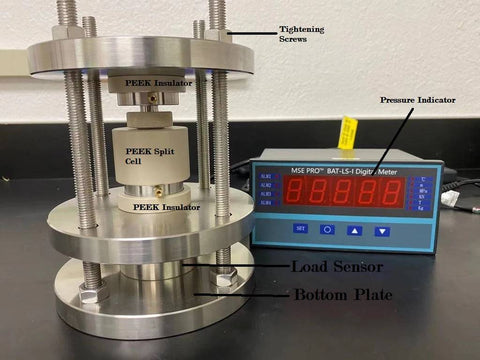

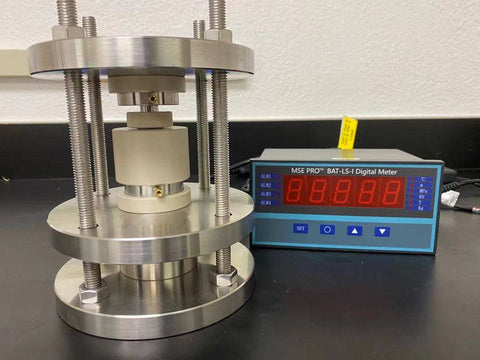

Components included in this product package: (1) pressure jig made of stainless steel, (2) pressure load sensor and digital meter. The PEEK split cell test kit is NOT included, and can be added to the package separately.
