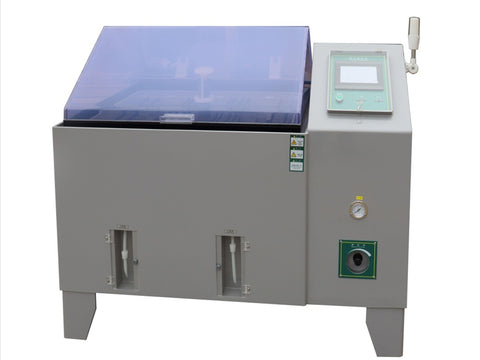

MSE PRO Multi-mode Salt Spray Test Chamber with Touchscreen Controller, 270L Capacity
SKU: MA3286
MSE PRO™ Multi-mode Salt Spray Test Chamber with Touchscreen Controller, 270L Capacity
MSE PRO™ Salt Spray Test Chamber, also known as a salt fog tester, allows for precise salt spray corrosion testing of parts, electronic components, protective layers of metal materials, and industrial products. It is widely used as a quality control test for coated materials and electronics.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Salt Spray Test Chambers. Please contact us for more information.
Technical Specifications：
| SKU |
MA3286 |
| Spray Mode | Continuous spraying, cyclic spraying, and programmable spraying – three modes selectable |
| Controller | Touchscreen controller |
| Test Room Temperature | Salt spray test (NSS/ACSS): 35°C ±1°C / Corrosion test (CASS): 50°C ±1°C |
| Pressure Barrel Temperature | Salt spray test (NSS/ACSS): 47°C ±1°C / Corrosion test (CASS): 63°C ±1°C |
| Brine Tank Capacity | 25L |
| Salt Spray (Brine) Concentration | 5% NaCl solution + 0.26g/L CuCl₂·2H₂O (for CASS) or 5% NaCl solution (for NSS) |
| Spray Pressure | 70–170 kPa |
| Spray Volume | 1–2 mL/(h·80cm²) (16-hour minimum collection for average) |
| Test Room Relative Humidity | >85% |
| pH | 6.5–7.2 / 3.0–3.2 |
| Power Supply Voltage | 220V/60Hz |
| Input Power | 2200W |
| Capacity | 270L |
| Chamber Dimension (WxDxH) | 900x500x600 mm |
| External Size (WxDxH) | 1450x1200x842 mm |
