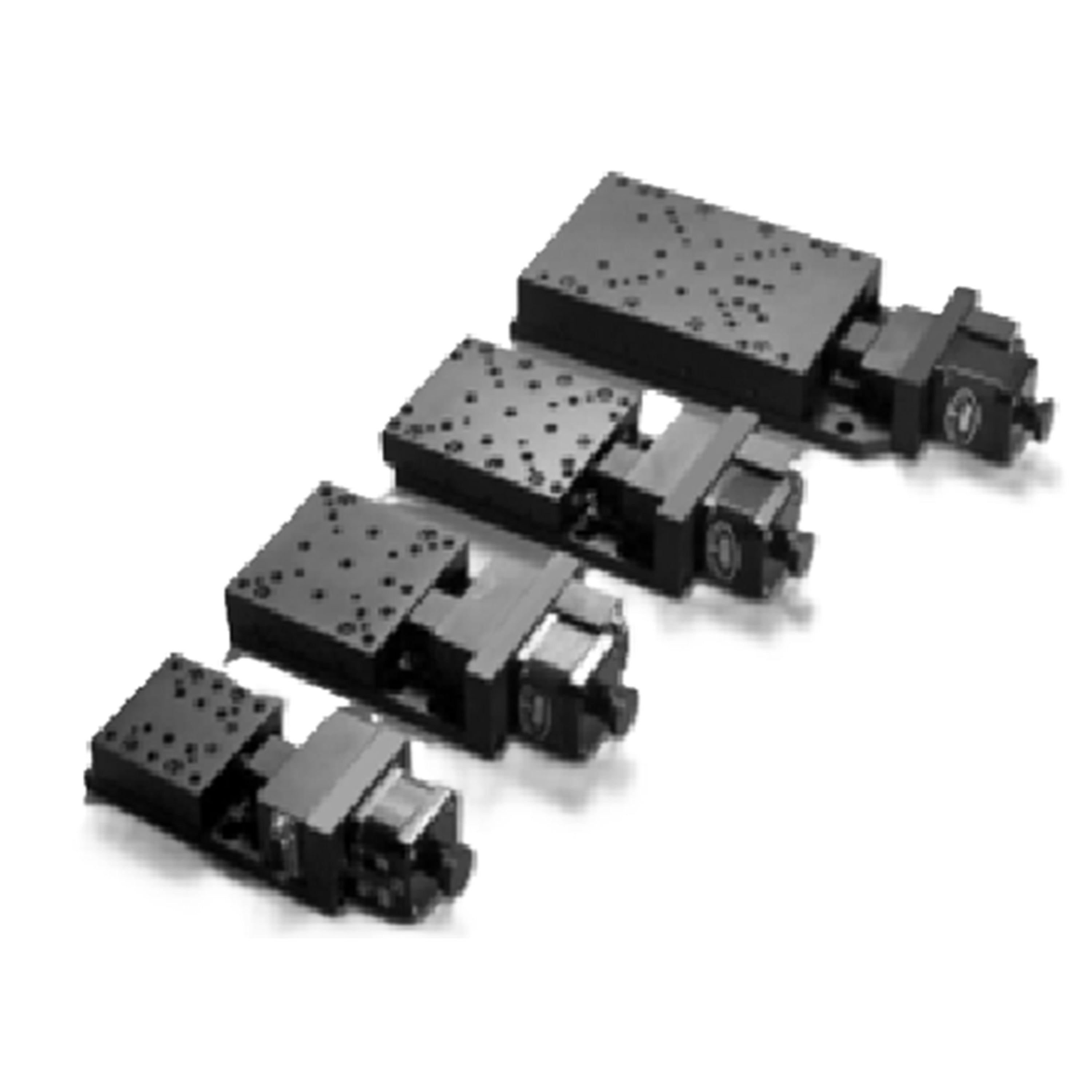

MSE PRO Motorized Liner Translation Stage, Grinding Screw, 50mm, 90 x 110mm
Regular price
$ 989.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Motorized Liner Translation Stage, Grinding Screw, 50mm, 90 x 110mm
Specification
| Structure Description | Travel Range | 50mm |
| Table Size | 90*110mm | |
| Lead Screw Specification |
Grinding Screw (Lead 1mm) | |
| Guide Rails | Precision Crossed Roller Guide | |
| Stepper Motor | 42 Stepper motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | ≤10kg | |
| Weight | 1.4kg | |
| Accuracy Description | Resolution | 20 μ (No Subdivision) 2.5 μ (20 Subdivisions) |
| Maximum Speed | 10mm/sec | |
| Repeat Positioning Accuracy | 25 μ (Grinding Screw) | |
| Backlash | 5 μ | |
| Lost Motion | 5 μ | |
| Accessory Description | Optional limit switches and optical coupler switches | |
| Customizable for high/low temperature or vacuum applications | ||
| Interchangeable servo motor | ||
| Can be paired with our motion controller series for automated control | ||
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
