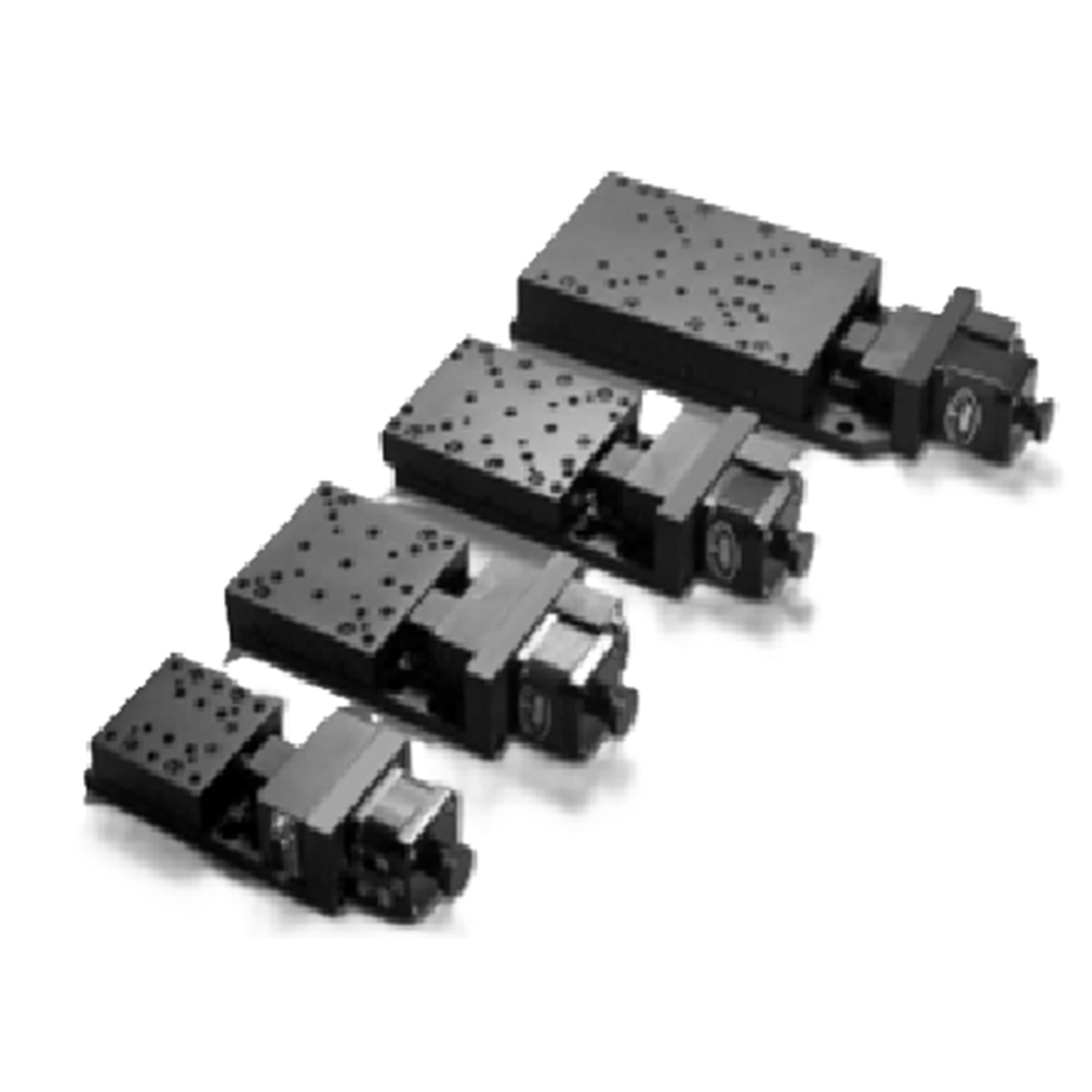

MSE PRO Motorized Liner Translation Stage, Ball Screw, 30mm, 90 x 90mm
Regular price
$ 1,599.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Motorized Liner Translation Stage, Ball Screw, 30mm, 90 x 90mm
Specification
| Structure Description |
Travel Range | 30mm |
| Table Size | 90*90mm | |
| Lead Screw Specification |
Ball Screw (Lead 1mm) | |
| Guide Rails | Precision Crossed Roller Guide | |
| Stepper Motor | 42 Stepper motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | ≦10kg | |
| Weight | 1.25kg | |
| Accuracy Description |
Resolution | 6 μm (No Subdivision) |
| 0.25 μm (20 Subdivisions) | ||
| Maximum Speed |
10mm/sec | |
| Repeat Positioning Accuracy |
5 μm (Closed-loop control 0.5 μm) | |
| Backlash | 2 μm | |
| Lost Motion | 2 μm | |
| Accessory Description |
Optional limit switches and optical coupler switches | |
| Customizable for high/low temperature or vacuum applications | ||
| Interchangeable servo motor | ||
| Can be paired with our motion controller series for automated control | ||
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
