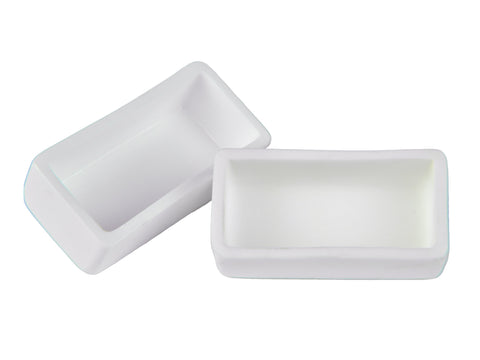

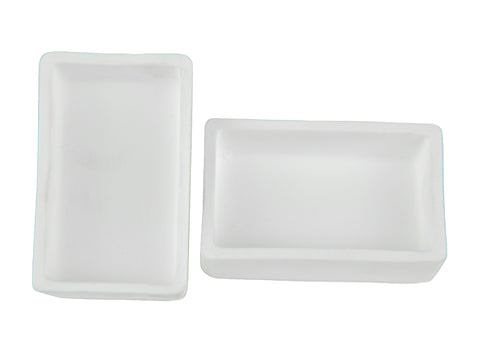

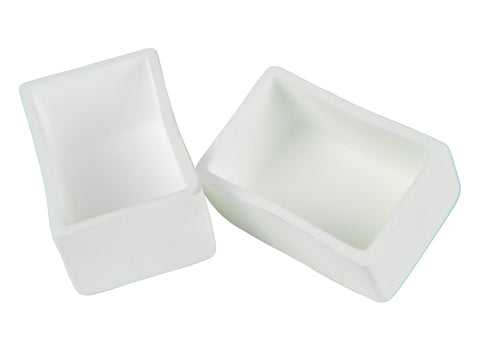

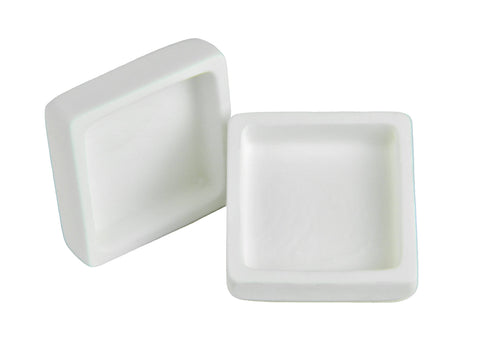

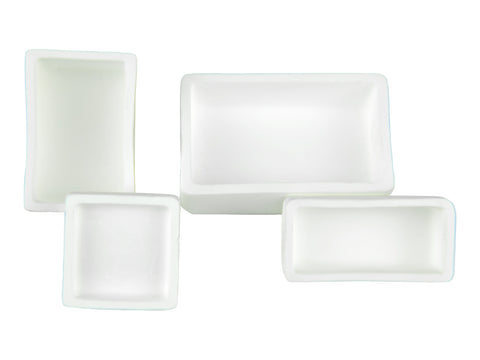

MSE PRO Magnesium Oxide Rectangular Trays and Crucibles

SKU: JA1355

  • £4000
  • Save £400

Product details:

Magnesium Oxide Rectangular Trays and crucibles are good for the application of ultra high temperature processes up to 4000 °F (2200 °C). It is a better alternative to Alumina (Al2O3) tray due to their superior chemical resistance and its inertness to metals, slags and superconductor compounds.

When MgO trays are used in lithium solid state electrolyte synthesis or sintering, MgO has its own unique advantage of not reacting with Lithium unlike Al2Ocrucibles, therefore it maintains the lithium vapor pressure better without causing access lithium loss in the solid state electrolyte.

Other applications include:

* Superconductor material processing

* Beta Alumina Processing

* Dielectric, piezoelectric, pyroelectric material processing

* Nickel based super alloy processing

* Plutonium and Uranium related material processing

Purity: >99.3%
Application temperature: up to 1800 °C (air) and 2200 °C (Nitrogen or vacuum)

Covers are available for purchase separately with additional cost. The dimensions listed are for reference only. Please contact us if you need tight tolerance. Crucibles are considered as consumables which are not covered by warranty.

 SKU# Volume (mL) Length (mm) Width (mm) Height (mm)
JA1355 12 40 40 15
JA1108 20 60 30 20
JA1169 45 60 40 30
JA1170 70 80 50 25
