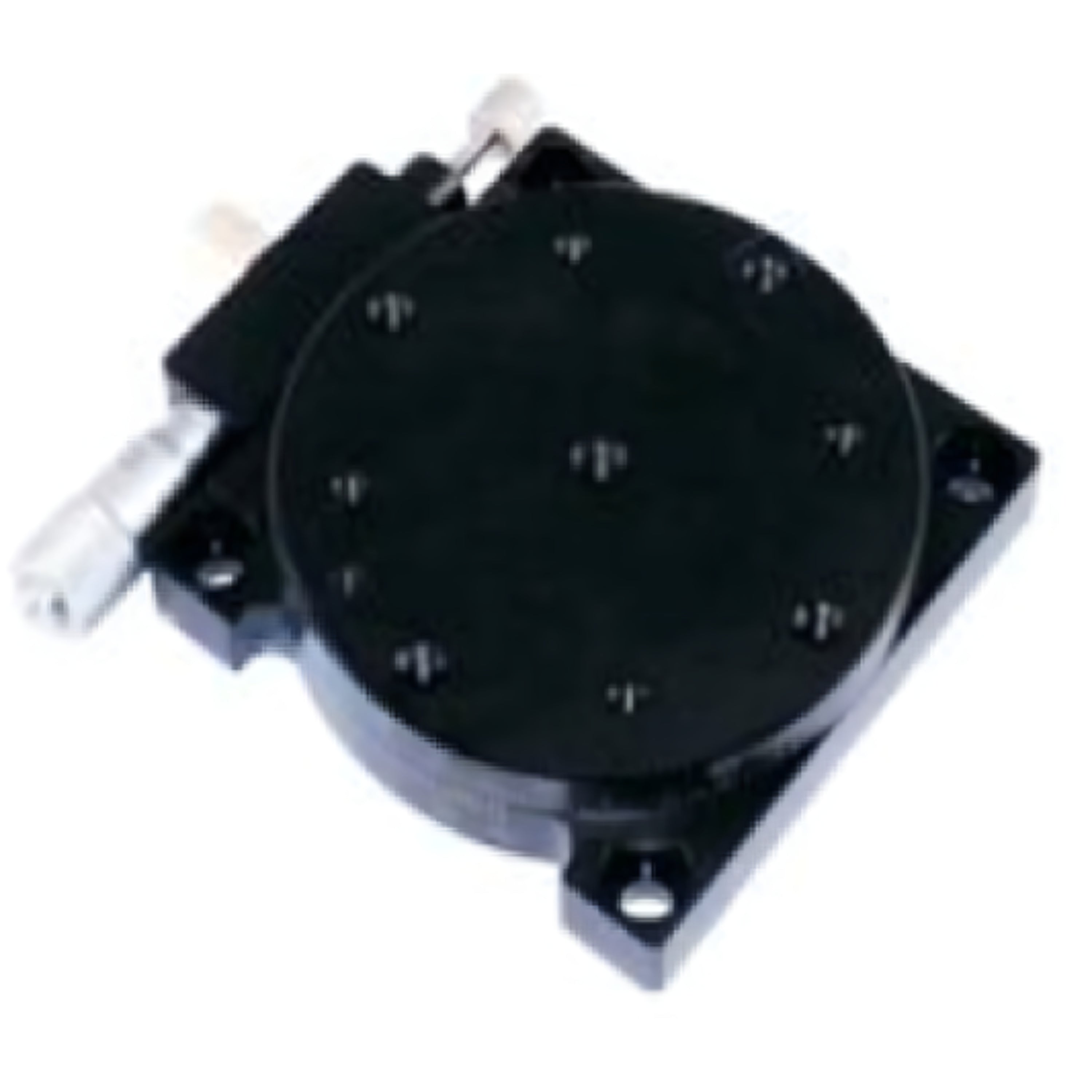

MSE PRO LSSH-60TV-A Manual Rotary Stages
Regular price
$ 241.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LSSH-60TV-A Manual Rotary Stages
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| Parameter | Value |
| SKU | OP0070243 |
| Model | LSSH-60TV-A |
| Platform Diameter | 60mm |
| Coarse Adjustment | 360 Degree |
| Fine Adjustment | ±5 Degree |
| Sensitivity | 0.002 mm |
| MIni Scaling | 10° |
| Load capacity | 3kg |
| Driving Mode | Micrometer Screw |
| Net Weight | 0.16 kg |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
