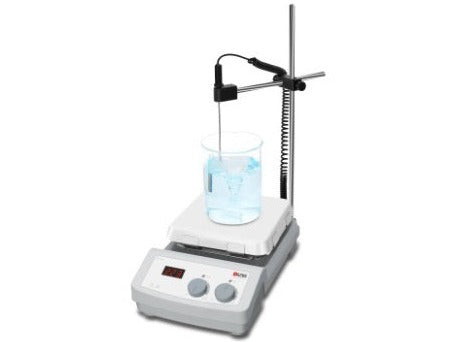

MSE PRO LED Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
SKU: LS1502
MSE PRO™ LED Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
- LED displays actual temperature
- Built-in PID controller ensures safe heating of the medium with overheating protection
- Maximum heating plate temperature up to 550℃
- Glass ceramic work plate is resistant to corrosion and is easy to clean
- Digital speed control with maximum range of 1500rpm
- Outstanding brushless DC motor offers more stirring power
- Two knobs enable easy adjustment of speed and temperature
- “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
- Remote function provides PC control and data transmission
- Optional: External temperature control is possible by connecting temperature sensor with an accuracy of ±0.2℃
Specifications:
|
SKU
|
LS1502
|
|
Work plate Dimension
|
184x184mm (7 inch)
|
|
Work plate material
|
Glass ceramic
|
|
Max. stirring quantity [H2O]
|
10L
|
|
Speed range
|
100-1500rpm
|
|
Speed display
|
Scale
|
|
Temperature display
|
LED
|
|
Heating temperature range
|
Room Temp. to 550℃, increment 5℃
|
|
Temperature control accuracy
|
±10℃
|
|
Temperature display accuracy
|
±0.1℃
|
|
External temperature sensor (optional)
|
accuracy ±0.2℃
|
|
"Hot" warning
|
50℃
|
|
Overheating temperature protection
|
580℃
|
|
Motor type
|
Shaded pole motor
|
|
Stirring positions
|
1
|
|
Max. magnetic bar length
|
80mm
|
|
Data connector
|
-
|
|
Timer function
|
-
|
|
Protection class
|
IP21
|
|
Motor rating input
|
15W
|
|
Motor rating output
|
1.5W
|
|
Power
|
1030W
|
|
Heating output
|
1000W
|
|
Voltage Frequency
|
100-120V (Standard)
200-240V，50/60Hz
|
|
Dimension [WxDxH]
|
215x360x112mm
|
|
Weight
|
4.5 kg
|
|
Permissible ambient temperature
|
5-40℃
|
|
Permissible ambient humidity
|
80% RH
|
