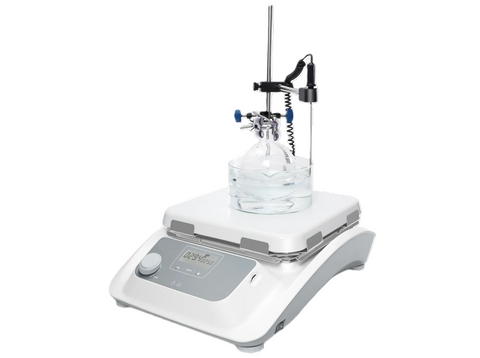

MSE PRO LCD Digital Hotplate, 10 Inch work plate
SKU: LS1505
MSE PRO™ LCD Digital Hotplate, 10 Inch work plate
- LCD screen shows temperature, Max. temperature up to 500℃
- 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer.
- The “HOT”warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off.
- Heating temperature: room temperature -500℃ .
- Data connector : The SD card records the instrument's running data in real time.
- Timing function: the running time of the instrument can be set.
- Optional: External temperature control is possible by connecting the temperature sensor with an accuracy at ±0.2°C
Specifications:
|
SKU
|
LS1505
|
|
Work plate Dimension
|
254x254mm(10 inch)
|
|
Work plate material
|
Glass ceramic
|
|
Speed display
|
LCD
|
|
Temperature display
|
LCD
|
|
Heating temperature range
|
Room Temp.-550℃, increment 1℃
|
|
Temperature control accuracy
|
±1℃(<100℃), ±1%(>100℃)
|
|
Temperature display accuracy
|
±0.1℃
|
|
External temperature sensor (optional)
|
Accuracy ±0.2℃
|
|
"Hot" warning
|
50℃
|
|
Overheating temperature protection
|
540℃
|
|
Heating positions
|
1
|
|
Timer function
|
1min-99h59min
|
|
Protection class
|
IP21
|
|
Power
|
1400W
|
|
Heating output
|
1350W
|
|
Voltage Frequency
|
100-120V, 50/60Hz (Standard)
200-240V, 50/60Hz
|
|
Dimension [WxDxH]
|
328x424x138mm
|
|
Weight
|
7.2kg
|
|
Permissible ambient temperature
|
5-40℃
|
|
Permissible ambient humidity
|
80% RH
|
