MSE PRO Graphene wrapped TiNb2O7 Powder
Introduction
Titanium niobium oxide (TiNb2O7 or TNO) is a very promising new anode material for lithium ion batteries. This crystalline mixed metal oxide has attracted strong interest as the alternative anode replacing traditional graphite anodes or Li4Ti5O12 (LTO). In comparison to Li4Ti5O12 (LTO), which has a maximum capacity of 175 mAh/g, TNO offers a higher discharge capacity (>255 mAh/g) and efficiency. TNO’s higher working voltage mitigates the risk of lithium dendrite formation during fast charging, enhancing safety and reliability. This makes TNO particularly advantageous for applications requiring high power, such as heavy duty electric vehicles and electric energy storage. By integrating TNO into lithium-ion batteries, faster-charging, longer-lasting, and safer energy storage systems are being developed.
Applications
-
Lithium ion battery anode materials
Specifications
|
Appearance |

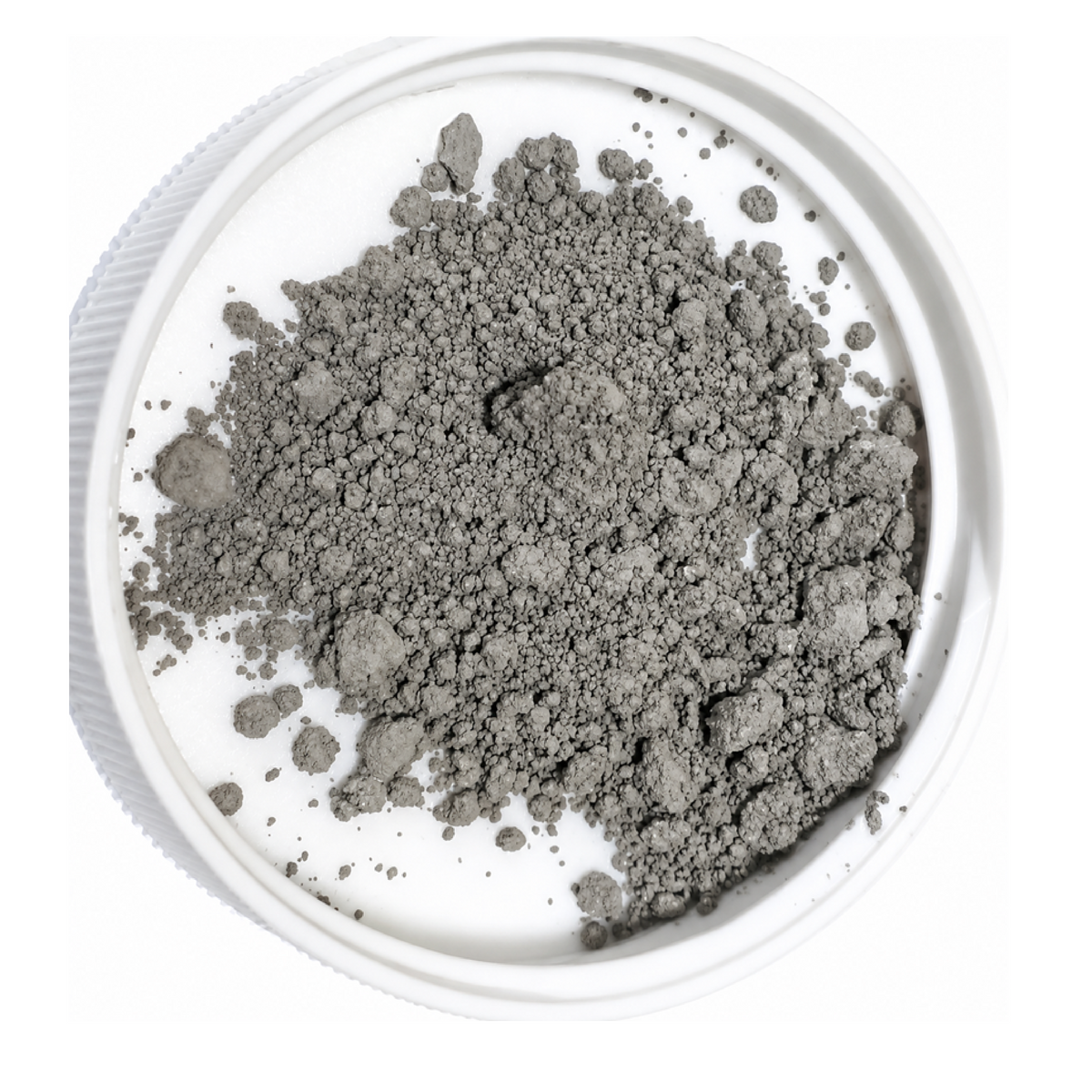

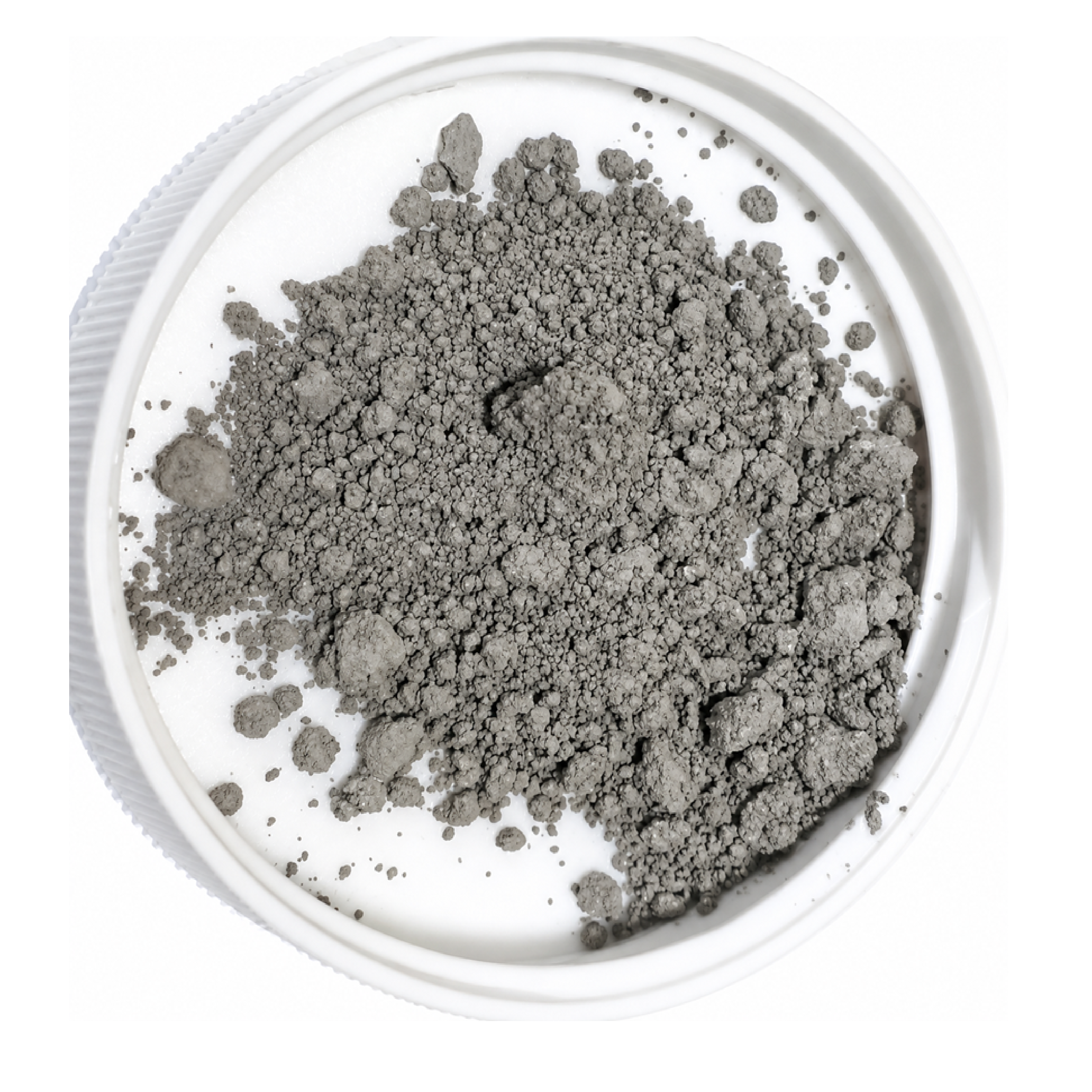

Dark grey powder |
|
Formula |
Graphene wrapped TiNb2O7, ~3% Gr |
|
Morphology |
Polycrystalline |
|
Average Particle size (D50) |
3.5 um |
|
Specific Capacity |
255 mAh/g (0.1C from 2.5 V to 1.0 V vs. Li) |
|
Melting Point |
1800 degree Celsius |
|
Density |
4.1 g/cm3 |
|
Storage Condition |
keep in the closed container away from humidity |
MSE offers a range of battery consumables. Please contact us for bulk price of larger quantities.
Literature Reference
-
H. Aghamohammadi, et al., “A comprehensive review study on pure titanium niobium oxide as the anode materil for Li-ion batteries” J. Alloys Comp., 2022, 911, 165117.
-
D. Kim, et al., “Synergistic effect of an oxygen-defective TiNb2O7 anode and lithiated polyacrylic acid for high power lithium ion storage”, J. Mater. Chem. A, 2025, 13, 4265
