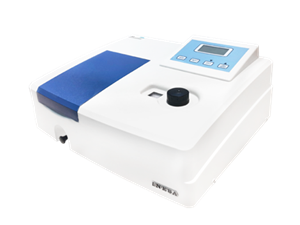

MSE PRO™ G Series VIS Spectrophotometer 325/340-1100nm
MSE Supplies VIS Spectrophotometer has been widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements.
- High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
- Backlit LCD display for an easy readout.
- Automatic 0A and 100%T.
- Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
- Direct concentration read-out and concentration factor setting function.
- Large sample compartment, for 5 - 100mm path length cuvettes with optional holders.
- Easy to change the halogen lamp or deuterium lamp by the user himself.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- Sample compartment for 5-100mm cuvettes
- Equipped with RS232 port
- Precise automatic T/A changeover
- Automatic zero and full scale adjustment
- Direct concentration read-out and concentration factor setting function
Please Contact Us for Available Models and Specifications.
Specifications
| SKU# | LS4600 |
LS4601 |
|
Photometry |
Split Beam |
Split Beam |
| Monochromator Type | Czerny-Turner | Czerny-Turner |
| Focal Length | 160mm | 160mm |
| Wavelength Range | 340-1100nm |
325-1100nm |
| Bandwidth | 2 nm | 2 nm |
| Wavelength Accuracy | ±2 nm | ±2 nm |
| Wavelength Repeatability | ≤1nm | ≤1nm |
| Wavelength Setting | Manual Turn Knob | Manual Turn Knob |
| Photometric Repeatability |
≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
≤0.2% T 0.002 Abs (0-0.5A) 0.004 Abs (0.5-1A) |
| Photometric Range |
0.0-100.0% T 0.000-1.999 A 0.000-1999 C |
0.0-200.0% T -0.097-4.000 A 0.000-9999 C |
| Photometric Accuracy |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
±0.5% T ±0.004 Abs (0-0.5A) ±0.008 Abs (0.5-1A) |
| Stray Light | ≤0.1%T(at 360nm NaNo2) |
≤0.1%T(at 360nm NaNo2) |
| Grating | 1200 lines/mm | 1200 lines/mm |
| Noise |
100%（T）noise≤0.3%(T) 0%（T）noise≤0.2%(T) |
100%（T）noise≤0.3%(T) 0%（T）noise≤0.2%(T) |
| Detector | Silicon Photocell |
Silicon Photocell |
| Touch Screen | n/a | 7-inch Multi Color |
| Power Requirements | AC220V±22V 50Hz±1Hz, 80W |
AC220V±22V 50Hz±1Hz, 120W |
| Dimension | 580mm X 460mm X 345mm | 580mm X 460mm X 345mm |
| Weight | 12.5 kg | 16.5 kg |
Standard Accessories
| Item | Description | Quantity |
| 1 | Operation manual | 1 Set |
| 2 |
UV WIN8 Spectrum data processing software |
1 set |
| 3 |
Glass cuvette 1cm |
4 Pcs |
| 4 |
Power cable |
1 Pcs |
| 5 |
Fuse |
2 Pcs |
| 6 |
Cuvette holder 10mm |
1 Pcs |
Optical Accessories
- Cuvette holder 50mm
- Cuvettes 20, 30, 50mm
