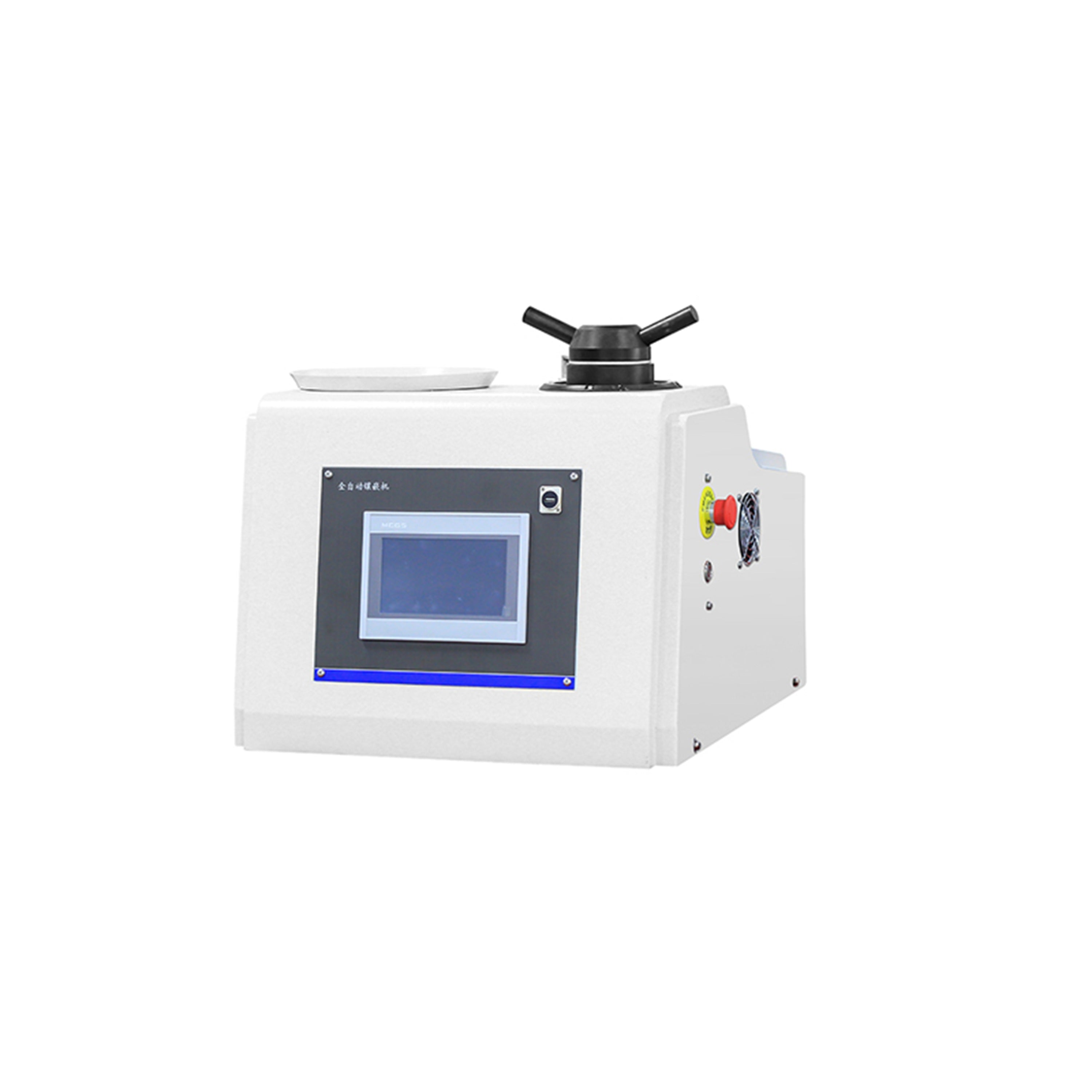

MSE PRO Fully Automatic Metallographic Mounting Press with Touchscreen Control (30mm)
Introduction
The MSE PRO Fully Automatic Metallographic Mounting Press is a high-efficiency system designed for fast, consistent, and automated sample mounting. Equipped with PLC control and a touchscreen interface, it enables fully automated operation from heating and pressurization to cooling and sample ejection.
With advanced pressure control, programmable process storage, and dual-sample capability, this system is ideal for high-throughput metallographic laboratories requiring reliable and repeatable sample preparation.
Key Features
- Fully Automatic Operation – One-button start completes the entire mounting cycle without manual intervention
- Dual Sample Mounting – Capable of mounting two samples simultaneously for improved efficiency
- Programmable Process Control – Stores up to 99 mounting recipes for different materials and applications
- Pre-Press Function – Adjustable pre-pressure, temperature, and time to prevent sample deformation
- Touchscreen Interface – 7-inch display for intuitive operation and real-time monitoring
- Hydraulic Pressure System – Stable and precise pressure control up to 30 MPa
- Rapid Heating & Cooling – Efficient thermal system ensures short cycle times (as low as ~6 minutes)
- Automatic Sample Ejection – Motorized eject system for easy and safe sample removal
- USB Data Transfer – Import/export process parameters via USB drive
- Reliable Cooling System – Automatic water cooling with optional external chiller support
Specification
| Parameter | Specification |
| Mounting Diameter | 25 mm (optional: 30 mm, 40 mm, 50 mm) |
| Max. Number of Samples | 2 |
| Heating Power | 2000 W |
| Max. Power | 2200 W |
| Temperature Range | 0 – 200 °C |
| Mounting Time Range | 0 – 30 min |
| Pressure Range | 0 – 30 MPa |
| Minimum Cycle Time | ~6 min (30 mm sample); ~8 min (50 mm sample) |
| Control System | PLC + Touchscreen |
| Display | 7-inch touchscreen |
| Program Storage | Up to 99 programs |
| Pressure System | Automatic hydraulic |
| Cooling System | Automatic water cooling (optional external chiller) |
| Data Interface | USB (import/export parameters) |
| Mold Height | 135 mm (effective height 60 mm) |
| Power Supply | AC 110 V, 60 Hz |
| Machine Dimensions | 680 × 570 × 530 mm |
| Weight | 90 kg |
MSE supplies offers various metallographic equipment, please contact us for more information.
