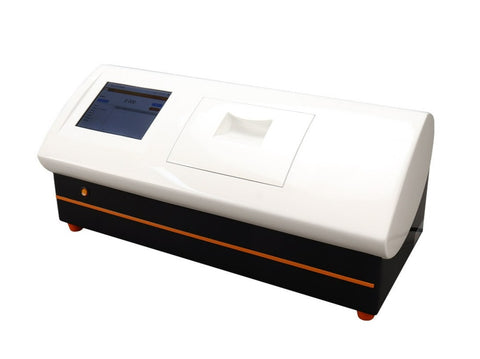

MSE PRO Economy Compact Automatic Polarimeter LED Light Source, +/-89.99° Angle of Rotation
MSE PRO™ Economy Compact Automatic Polarimeter LED Light Source, +/-89.99° Angle of Rotation
The polarimeter, equipped with automatic photoelectric inspection technology, offers precise and dependable measurements along with user-friendly operation. By analyzing optical rotation, it allows for the determination of substance density, content, and purity. It finds extensive application across various industries including pharmaceuticals, petroleum, food, chemicals, flavors, spices, sugar production, as well as in universities and research institutes.
Features:
-
Touch Screen: Equipped with a 5.6 inch color touch screen display and an intuitive software interface for convenient device operation and data acquisition.
-
LED Light Source: Utilizes high-brightness LED lights with a service life exceeding 100,000 hours, eliminating the need for frequent light source replacement.
- Calibration System: Additional standard polarization tubes available (optional) and software for calibration.
MSE Supplies offers a variety of optical physics instrument to meet your needs. Please contact us for more information.
Specifications:
| SKU | MA1214 |
| Measuring Range | ±89.99°Arc; ±259°Z |
| Measuring Model | Optical Rotation; Specific Rotation; Concentration; Sugar Degree |
| Min. Reading | 0.001°(optical rotation) |
| Accuracy |
±0.01°(-45°≤optical rotation ≤+45°) ±0.02° ( optical rotation＜-45° or optical rotation＞+45°) |
| Repeatability (Standard Deviation) | 0.002°(optical rotation) |
| Min. Transmittance | 1% |
| Light Source | LED |
| Wavelength | 589.3nm LED |
| Communication Port | USB; RS232 |
| Data Storage | 1000 sets |
| Display | 5.6 inch touch screen |
| Sample Cell | Up to 200mm |
| Power | 110V AC 60Hz |
| Calibration Tube kits (Optional) | Each set includes angles +/- 5 degrees, +/-17 degrees and +/- 34 degrees. (Total 6pcs/set) |
