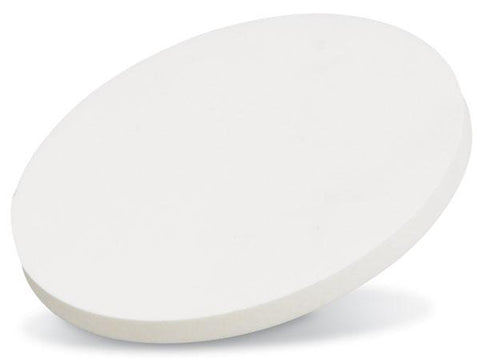

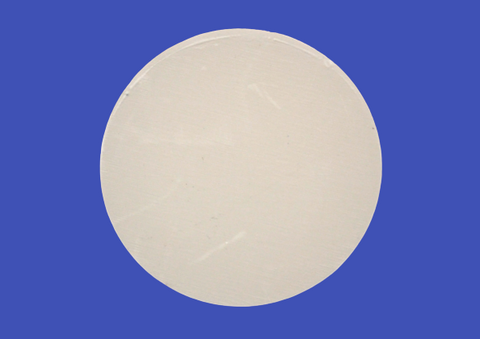

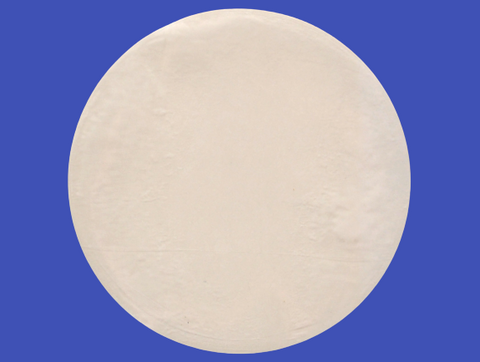

MSE PRO Boron Nitride Sputtering Target BN, 99.5%

SKU: TA1107

  • £32000
  • Save £3800



Specifications

Material Type

Boron Nitride (hexagonal)

Purity 99.5%
Symbol BN
Color/Appearance White, Crystalline Solid
Refractive Index 1.8
Melting Point ( deg?C) 2,973
Theoretical Density (g/cm3) 2.1
Sputter RF, RF-R
Max Power Density
(Watts/Square Inch)
20
Type of Bond Indium, Elastomer
Comments Decomposes when sputtered. Reactive preferred.
Boron nitride is a thermally and chemically resistant refractory compound of boron and nitrogen with the chemical formula BN. It exists in various crystalline forms that are isoelectronic to a similarly structured carbon lattice. The hexagonal form corresponding to graphite is the most stable and soft among BN polymorphs, and is therefore used as a lubricant and an additive to cosmetic products. The cubic (sphalerite structure) variety analogous to diamond is called c-BN; it is softer than diamond, but its thermal and chemical stability is superior. The rare wurtzite BN modification is similar to lonsdaleite but slightly softer than the cubic form.

Because of excellent thermal and chemical stability, boron nitride ceramics are traditionally used as parts of high-temperature equipment. Boron nitride has potential use in nanotechnology. Nanotubes of BN can be produced that have a structure similar to that of carbon nanotubes, i.e. graphene (or BN) sheets rolled on themselves, but the properties are very different.
Typical Analysis: 99.5% BN

Element

Value (ppm) via ICP-AES

Fe

229

C

100

Cu

100

Zn

50

Pb

20

As

30

Si

100

Co

20

Ta

50

Sb

30

Sn

30

In

20

Cr

30

Ag

10

Ni

20
