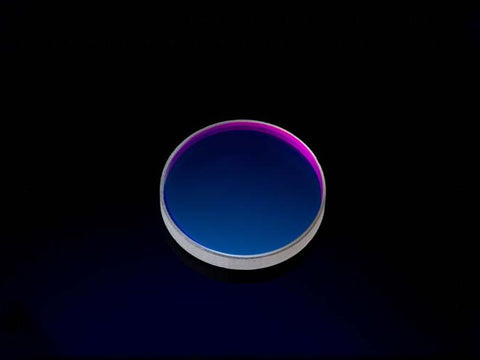

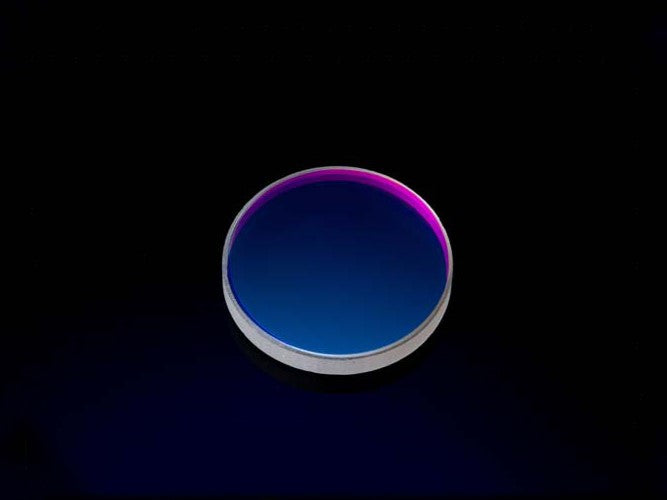

MSE PRO BK7 Dual Wavelength Dielectric HR Mirrors, Wavelength@532 & 1064nm
Regular price
$ 105.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO™ BK7 Dual Wavelength Dielectric HR Mirrors, Wavelength@532&1064nm
MSE supplies offers BK7 Dual Wavelength Dielectric HR Mirrors, Wavelength@532 & 1064nm. These Nd:YAG/YLF laser mirrors are designed for high reflectance at the appropriate dual wavelengths. They are intended for use at either 45°or normal incidence. We also offer dual wavelength mirrors for use at the fundamental and second harmonic wavelengths.
MSE Supplies can offer a variety of optical components. Please contact us for customization or bulk orders.
Technical Data:
| Material | BK7, fine annealed |
| Diameter Tolerance | +0.0/-0.1 |
| Thickness | 4±0.1 |
| Parallelism | <3‘ |
| Flatness | λ/8 at 633nm |
| Surface Quality | 20-10 scratch-dig |
| Back Surface | commercial polish |
| Clear Aperture | 90% diameter |
| Average Reflectance |
Rave>99.5% for 45˚ angle of incidence |
