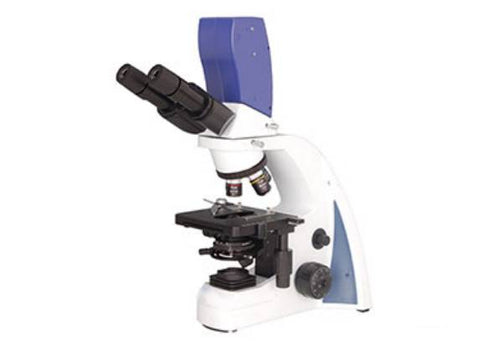

MSE PRO Binocular 5M Build-in Camera Biological Microscope
SKU: BB0409
MSE PRO™ Binocular 5M Build-in Camera Biological Microscope
The MSE PRO™ Binocular 5M Build-in Camera Biological Microscope is a high-performance microscope designed for various applications, including research, education, and clinical settings. It features a comfortable and versatile binocular viewing head, a range of high-quality objectives, precise focusing mechanisms, and a powerful illumination system. The microscope also includes a mechanical stage for easy specimen manipulation and an imaging system for capturing and analyzing images.
- Ergonomic Design: The binocular viewing head is inclined at 30° and rotatable 360°, offering comfortable viewing for extended periods. The interpupillary distance is adjustable for individual preferences.
- High-Quality Optics: The microscope is equipped with a set of infinite plan achromatic objectives, providing sharp, clear, and distortion-free images across a wide field of view.
- Precise Focusing: The coaxial coarse and fine focusing system allows for accurate and precise focusing adjustments, even at high magnifications.
- Versatile Illumination: The halogen lamp provides bright and even illumination, while the Kohler illumination system ensures optimal image quality and contrast.
- Imaging Capability: The 3M CMOS imaging system allows for capturing and analyzing images, making it ideal for documentation, research, and education.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Biological Microscopes. Please contact us for more information.
Specifications:
| SKU# | Specification | BB0409 | ||
| Viewing Head | Compensation Free Binocular Head. Inclined at 30°. Interpupilary Distance 48-75mm | ✓ | ||
| Camera System |
Valid Pixel | 1280 x 1024(1.3M Pixel) | / | |
| 1800 x 1200(2.0M Pixel) | / | |||
| 2048 x 1038(3.0M Pixel) | ✓ | |||
| 2052 x 1944(5.0M Pixel) | • | |||
| Output Mode | USB2.0 | ✓ | ||
| Operation System | WINDOWS7/8 2030 / KW VISTA | ✓ | ||
| Software | Scopelmage 9.0 | ✓ | ||
| Range of Viewing Field | >90%(BMB-117M ); 18mm(BMB-300M) | ✓ | ||
| Eyepiece | WF10x/1 8 | ✓ | ||
| P16x/11 | / | |||
| Extra wide filed eyepiece EW10x/20 with diopter adjustment | • | |||
| Objective | Achromatic Objective 4x, 10x, 40x, 100x | / | ||
| Infinite plan Achromatic Objective 4x, 10x, 40x, 100x | ✓ | |||
| Infinite Plan Achromatic Phase Objective 10x, 20x, 49x, 100x | • | |||
| Oil Darkfield Objective with Iris Diaphragm 100x (NA0.36-1.25) | • | |||
| Nosepiece | Backward Quadruple Nosepiece | / | ||
| Quintuple Nosepiece | • | |||
| Quadruple Nosepiece | ✓ | |||
| Stage | Double Layers Mechanical Stage 140*140 mm. Moving range 75*50 mm | ✓ | ||
| Condenser | Abbe NA1.20 with Iris Diaphragm & Filter | / | ||
| Swing Condenser N.A.0.910.25 | ✓ | |||
| Turret Phase Contrast Condenser | • | |||
| Dark Field Condenser (Dry) | • | |||
| Dark Field Condenser (Oil) | • | |||
| Focusing | Coaxial Coarse & Fine Adjustment System, Range 24 mm. Fine Division 0.004 mm | / | ||
| Coaxial Coarse & Fine Adjustment System, Range 20 mm | ✓ | |||
| Illumination | LED 3W, Brightness Adjustable | / | ||
| Halogen Lamp 6V/20W. Brightness Adjustable | / | |||
| S-LED Powerful Illumination | ✓ | |||
| Power Supply | AC 110-220V | ✓ | ||
| Accessories | Phase Contrast Kit | • | ||
| Dark-Field Attachment | • | |||
| Polarization Attachment | • | |||
Note: ✓ Standard Outfit, • Optional, / without this feature
