MSE PRO Autosampler for Chromatography System, Model 3

MSE PRO™ Autosampler for Chromatography System, Model 3

Overview

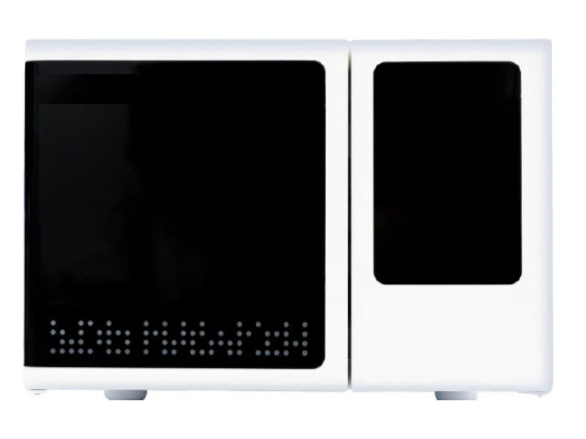

MSE PRO Autosampler for Chromatography System, Model 3 is a high-performance autosampler offering exceptional precision in micro-liter injection accuracy. This autosampler system features three injection modes (full loop, partial loop, and micro injection with a minimum volume of 1 µL), dual-channel independent injection with trigger acquisition, water and sample bottle shortage alarms, and thimble protection with continuous injection capability.

Specification

Channel Number: 2
Vial Capacity: 120 vials (2 mL each)
Maximum Injection Volume: 500 µL
Minimum Injection Volume: 1 µL
Injection Modes: Full loop, partial loop, micro injection
Injection Accuracy: ±1%
Injection Precision: ≤0.5%
Residual Rate: ≤0.01%

Dimensions:

• Weight: 17.5 kg
• Length: 523 mm
• Width: 360 mm
• Height: 256 mm

Power Configuration:

• Power Supply: AC110-240V, 50/60Hz, 150W
• Fuse: 5×20mm, T6.3AL, AC250V
