MSE PRO Automatic Advanced Digital Rockwell Hardness Tester

Order upon Request
SKU: MA0067888
$ 7,233.95

Still have questions? Ask our experts!

Email +1 (520) 789-6673

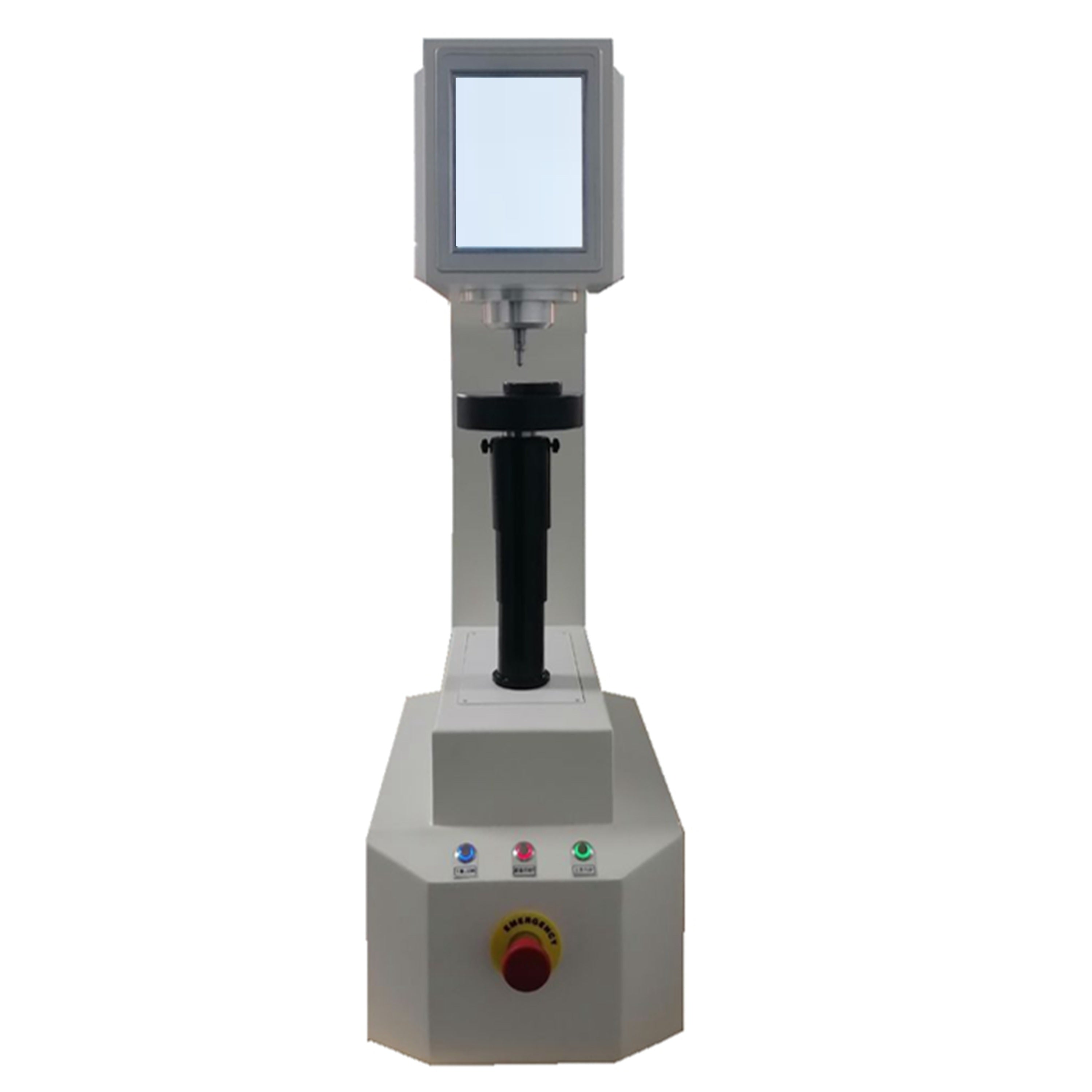

MSE PRO Automatic Advanced Digital Rockwell Hardness Tester

1. Introduction

The MSE PRO Automatic Advanced Digital Rockwell Hardness Tester is a high-precision, fully automated system designed for efficient and reliable hardness testing. Featuring a closed-loop electronic loading system and an automatically elevating stage, it enables seamless operation from sample placement to result display. With advanced touchscreen controls, automatic calibration, and data export capabilities, this tester is ideal for industrial quality control and laboratory environments requiring accuracy, repeatability, and ease of use.

2. Key Features

  • Fully automatic testing process with motorized stage lifting and automatic load/unload
  • Closed-loop electronic loading system with high-precision force control (≤0.5% error)
  • Touchscreen interface with direct hardness scale selection and automated parameter adjustment
  • Automatic hardness correction across low, medium, and high ranges using standard blocks
  • Built-in scale conversion (Rockwell, Brinell, Vickers) with pass/fail limits and alarm functions
  • USB data export in Excel format for easy data management and reporting

3. Specifications

Category Specification
Initial Test Force 10 kgf (98.07 N)
Total Test Force 60 kgf (588 N), 100 kgf (980 N), 150 kgf (1471 N)
Rockwell Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Test Range HRA: 20–88; HRB: 20–100; HRC: 20–70; HRD: 40–77; HRE: 70–100; HRF: 60–100; HRG: 30–94; HRH: 80–100; HRK: 40–100; HRL: 100–120; HRM: 85–115; HRR: 114–125
Standards BS EN 6508, ISO 6508, ASTM E18
Dwell Time 0–99 s
Hardness Resolution 0.1 HR
Test Force Accuracy ≤0.5%
Display LCD touchscreen
Data Output LCD display
Data Storage USB export (Excel format)
Scale Conversion Rockwell, Brinell, Vickers
Max Sample Height 300 mm
Throat Depth 200 mm
Dimensions 560 × 280 × 850 mm
Weight 80 kg
Power Supply 110V, 60Hz



MSE supplies offers various metallographic equipment, please contact us for more information.
