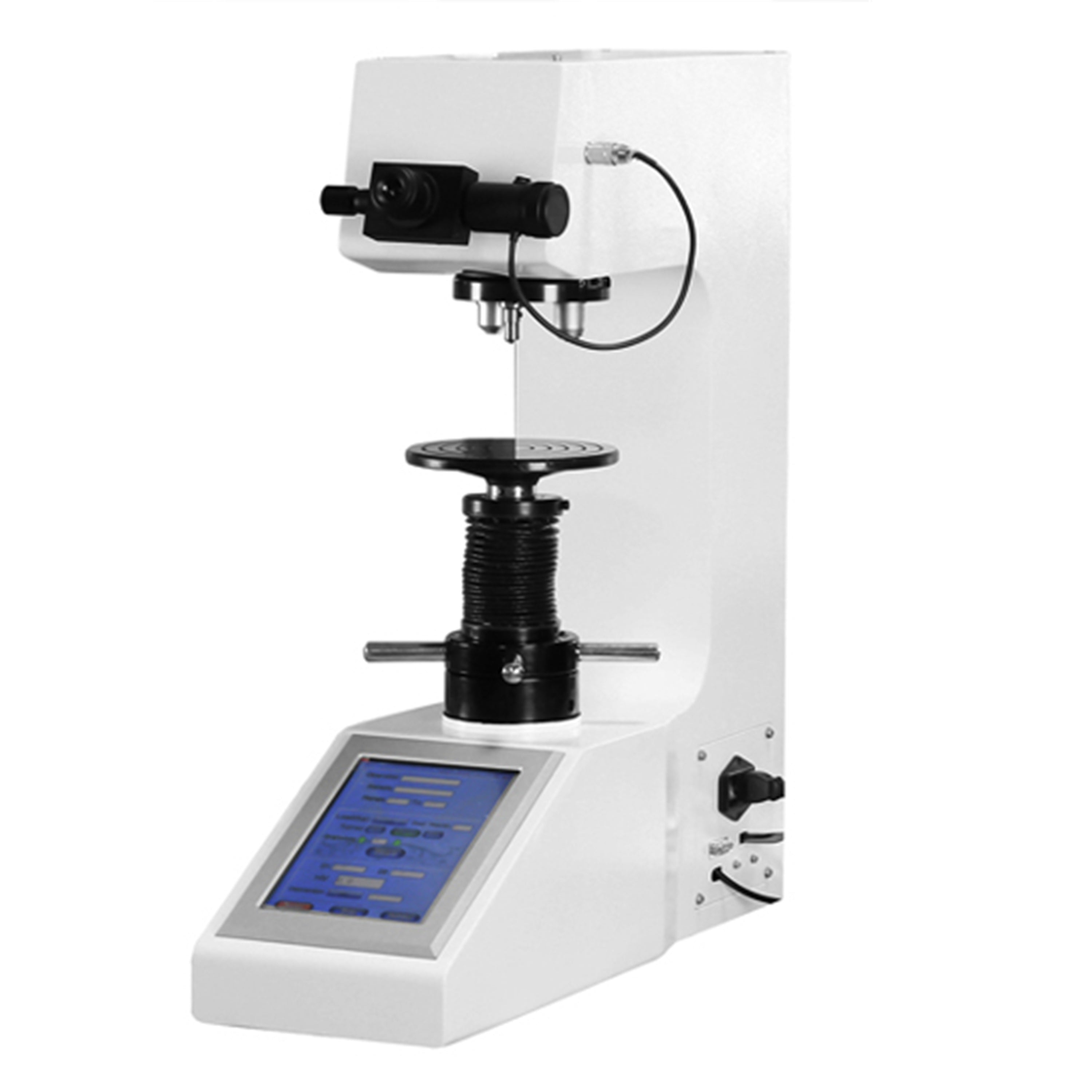

MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (50 kgf)
Introduction
The MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (50 kgf) is a flagship hardness testing system designed for high-load, high-precision material evaluation. With an extended load capacity up to 50 kgf, it enables accurate hardness testing across a wide range of materials, from microstructures to large bulk components.
Equipped with automatic turret switching, advanced closed-loop force control, and intelligent data processing, this system ensures exceptional measurement accuracy, repeatability, and operational efficiency. It is ideal for advanced metallurgical laboratories, heat treatment analysis, and industrial quality assurance applications.
Key Features
- Ultra-Wide Load Range up to 50 kgf – Supports full-range Vickers hardness testing from micro to heavy-load applications
- Automatic Turret System – Seamless switching between indenter and objectives with high positioning accuracy (<1 µm)
- Closed-Loop Control System – Ensures precise, stable force application for superior repeatability
- Touchscreen Interface – 8-inch intuitive display for easy operation and real-time data monitoring
- High-Precision Measurement – Resolution down to 0.01 µm for accurate indentation analysis
- Comprehensive Data Management – Test data stored and exported in Excel format via USB for reporting and analysis
- Flexible Measurement Configuration – Dual objectives (10×, 20×) with automatic calibration and multi-scale conversion
Specification
| Parameter | Specification |
| Hardness Scales | HV (convertible to Rockwell, Brinell, and others) |
| Test Force Range | 1 kgf – 50 kgf |
| Test Force Levels | 1, 2, 2.5, 3, 5, 10, 15, 20, 30, 40, 50 kgf |
| Standards Compliance | ASTM E92, ISO 6507 |
| Measurement Resolution | 0.01 µm |
| Display | 8-inch touchscreen |
| Data Output | USB export (Excel format), LCD display |
| Test Method | Automatic loading, dwell, and unloading |
| Dwell Time | 1 – 99 s |
| Microscope Magnification | 100×, 200× |
| Objectives | 10×, 20× |
| Hardness Range | 8 – 2900 HV |
| Maximum Sample Height | 180 mm |
| Throat Depth | 160 mm |
| Turret System | Automatic turret (indenter/objective switching) |
| Positioning Accuracy | < 1 µm |
| Dimensions | 580 × 190 × 700 mm |
| Weight | ~55 kg |
| Power Supply | 110 V, 60 Hz |
| Optional Features | Built-in camera, multi-language interface |
MSE supplies offers various metallographic equipment, please contact us for more information.
