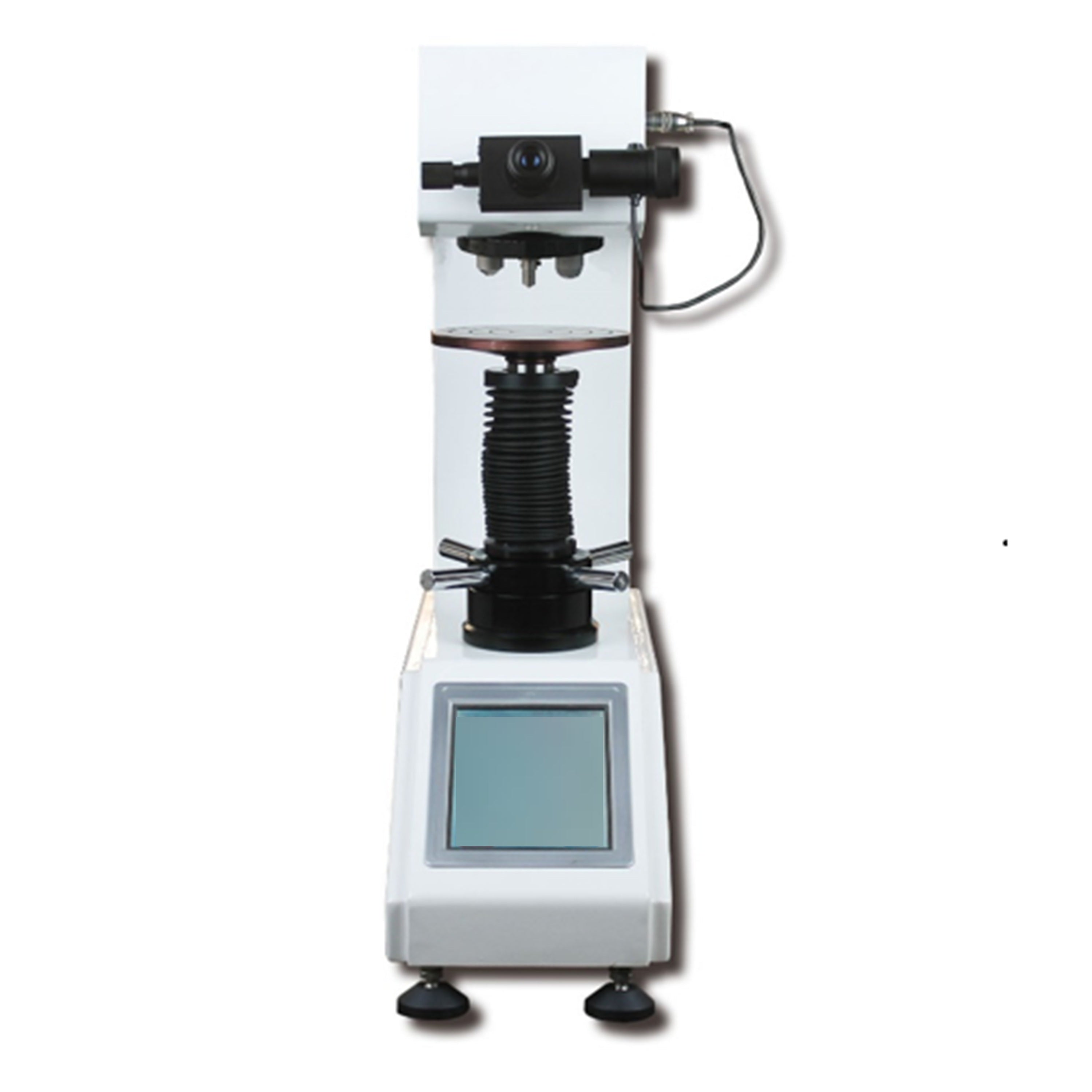

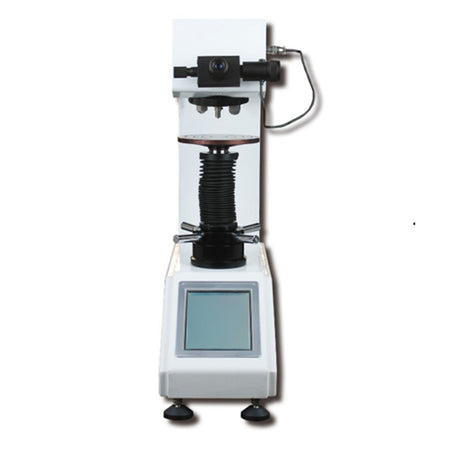

MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (120 kgf)
Introduction
The MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (120 kgf) is a top-tier hardness testing system engineered for high-load, high-precision applications. With an extended test force capacity up to 120 kgf, it enables comprehensive hardness evaluation across a wide spectrum of materials, from fine microstructures to large, hardened components.
Featuring an advanced closed-loop control system, automatic turret operation, and intelligent data management, this system ensures superior accuracy, repeatability, and efficiency. It is ideal for advanced metallurgical laboratories, heavy-duty material testing, and industrial quality assurance environments.
Key Features
- Ultra-High Load Capacity up to 120 kgf – Supports full-range Vickers hardness testing from micro to heavy-load applications
- Closed-Loop Control System – High-precision sensor-based force control with automatic compensation for improved accuracy
- Automatic Turret Operation – Seamless switching between indenter and objectives with precise positioning
- Touchscreen Interface – Large, intuitive display with menu-driven operation and real-time data visualization
- High-Precision Measurement – Resolution down to 0.01 µm for accurate indentation analysis
- Comprehensive Data Management – Test data stored and exported in Excel format via USB for reporting and traceability
- Multi-Scale Conversion & Calibration – Supports conversion across multiple hardness scales with automatic calibration
Specification
| Parameter | Specification |
| Hardness Scales | HV (convertible to Rockwell, Brinell, and others) |
| Test Force Range | 2 kgf – 120 kgf |
| Test Force Levels | 2, 3, 5, 10, 20, 30, 50, 60, 100, 120 kgf |
| Standards Compliance | ASTM E92 |
| Measurement Resolution | 0.01 µm |
| Display | Touchscreen interface |
| Data Output | USB export (Excel format), LCD display |
| Test Method | Automatic loading, dwell, and unloading |
| Dwell Time | 1 – 99 s |
| Microscope Magnification | 100×, 200× |
| Hardness Range | 8 – 2900 HV |
| Maximum Sample Height | 180 mm |
| Throat Depth | 160 mm |
| Turret System | Automatic turret (indenter/objective switching) |
| Dimensions | 580 × 190 × 700 mm |
| Weight | ~55 kg |
| Power Supply | 110 V, 60 Hz |
| Optional Features | Multi-language interface, calibration tools, camera system |
MSE supplies offers various metallographic equipment, please contact us for more information.
