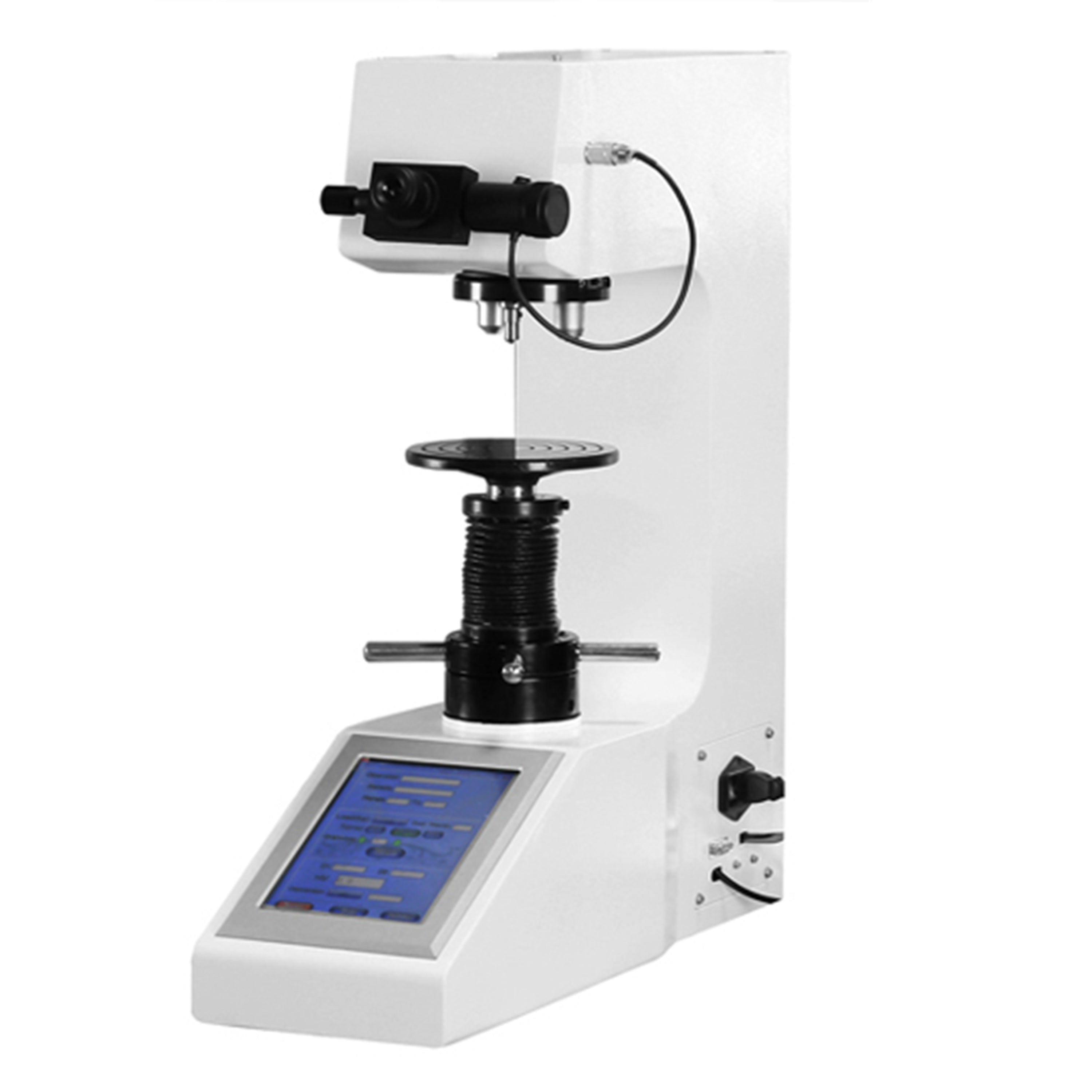

MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control (10 kgf)
Introduction
The MSE PRO Advanced Automatic Turret Vickers Hardness Tester with Closed-Loop Control is a high-performance system designed for precise and reliable hardness testing across a wide range of materials. Featuring automatic turret switching, multi-level test forces up to 10 kgf, and advanced control architecture, it ensures accurate and repeatable measurements.
With an intuitive touchscreen interface, automated testing workflow, and integrated data management, this system enhances efficiency while maintaining high measurement accuracy, making it ideal for research laboratories, metallurgical analysis, and industrial quality control applications.
Key Features
- Wide Load Range up to 10 kgf – Supports multiple test forces for micro to macro hardness applications
- Automatic Turret System – Seamless switching between indenter and objectives with high positioning accuracy (<1 µm)
- Closed-Loop Control System – Ensures precise force application and improved repeatability
- Touchscreen Interface – 8-inch display with intuitive control and real-time data visualization
- High-Precision Measurement – Resolution down to 0.01 µm for accurate indentation analysis
- Comprehensive Data Management – Results stored and exported in Excel format via USB for reporting and analysis
- Flexible Measurement Configuration – Dual objectives (10×, 20×) with automatic calibration and multi-scale conversion
Specification
| Parameter | Specification |
| Hardness Scales | HV (convertible to Rockwell, Brinell, and others) |
| Test Force Range | 0.3 kgf – 10 kgf |
| Test Force Levels | 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 kgf |
| Standards Compliance | ASTM E92, ISO 6507 |
| Measurement Resolution | 0.01 µm |
| Display | 8-inch touchscreen |
| Data Output | USB export (Excel format), LCD display |
| Test Method | Automatic loading, dwell, and unloading |
| Dwell Time | 1 – 99 s |
| Microscope Magnification | 100×, 200× |
| Objectives | 10×, 20× |
| Hardness Range | 8 – 2900 HV |
| Maximum Sample Height | 180 mm |
| Throat Depth | 160 mm |
| Turret System | Automatic turret (indenter/objective switching) |
| Positioning Accuracy | < 1 µm |
| Dimensions | 580 × 190 × 700 mm |
| Weight | ~55 kg |
| Power Supply | AC 110 V, 60 Hz |
| Optional Features | Built-in camera, multi-language interface |
MSE supplies offers various metallographic equipment, please contact us for more information.
