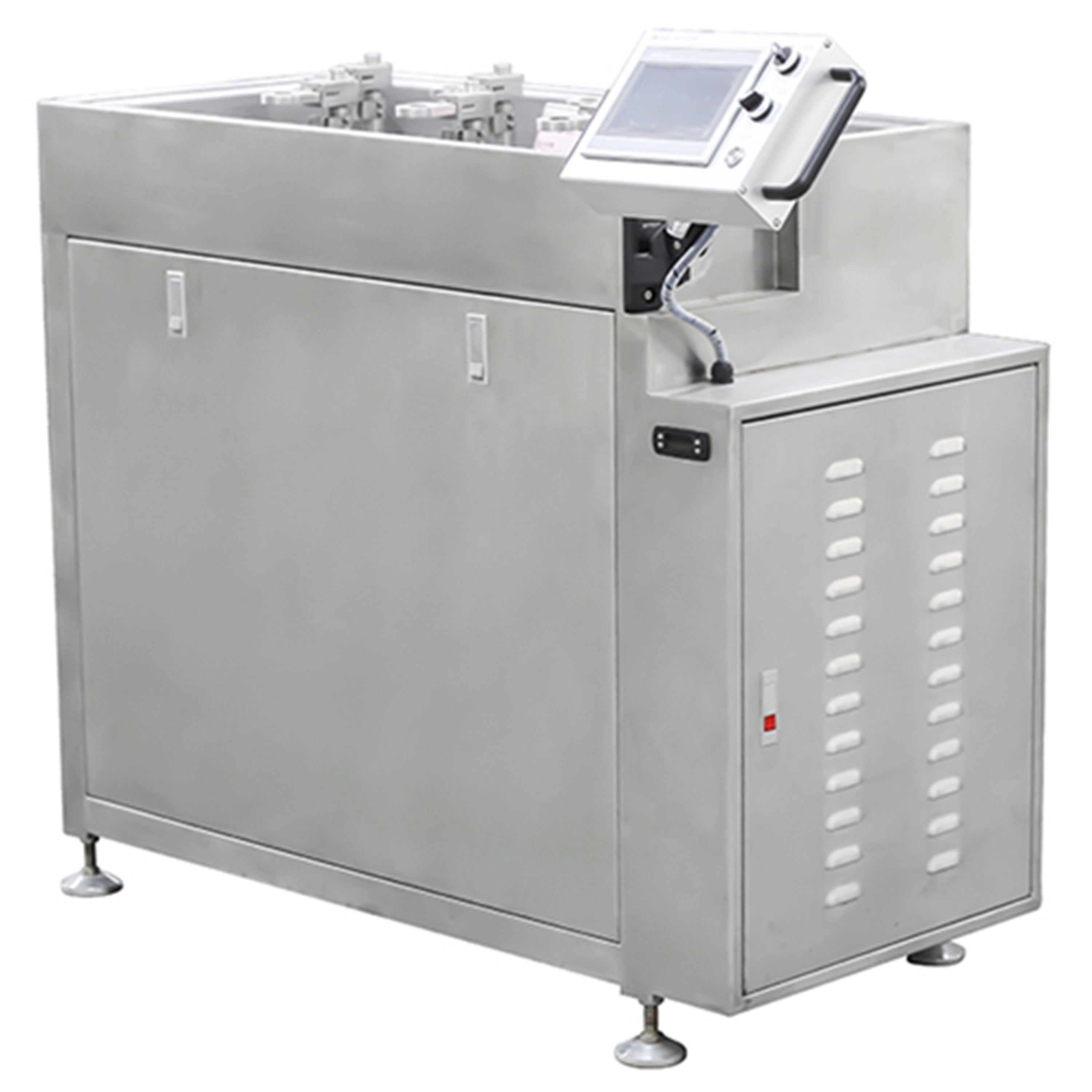

MSE PRO Advanced 7-Station End-Quench (Jominy) Testing System with PLC Control
Introduction
The MSE PRO Advanced 7-Station End-Quench (Jominy) Testing System is a high-throughput, PLC-controlled solution designed for precise evaluation of steel hardenability under standardized quenching conditions. Built to meet international testing standards, this system enables accurate and repeatable analysis of carbon steels, alloy steels, tool steels, and bearing steels.
With seven independently controlled stations, automated spray control, and stable thermal management, this system is ideal for laboratories and industrial facilities requiring high efficiency, precision, and reliability in metallurgical testing.
Key Features
- 7-Station High-Throughput Design – Simultaneously test up to seven samples for maximum efficiency
- PLC Full Process Control – Ensures precise, automated, and repeatable testing
- Touchscreen Interface – Simple and intuitive parameter setting and monitoring
- Automatic & Manual Spray Control – High-sensitivity photoelectric sensor enables automatic water activation
- Independent Station Adjustment – Each station allows precise control of nozzle height and alignment
- 3D Positioning Adjustment – Adjustable X/Y/Z positioning ensures accurate nozzle-to-sample alignment
- Stable Cooling Performance – Maintains water temperature at 20 ± 3 °C under ambient conditions (0–50°C)
- High Flow Cooling System – Delivers uniform and consistent quenching conditions across all stations
- Water Level Alarm System – Automatically alerts when water level is insufficient
- Auxiliary Heating System – Integrated 1.0 kW heating supports operation in low ambient temperatures
- Durable Stainless Steel Construction – 304 stainless steel structure for corrosion resistance and longevity
Specifications
| Parameter | Specification |
| Number of Stations | 7 |
| Control System | PLC + Touchscreen |
| Water Pump Quantity | 7 |
| Water Jet Diameter | 12.5 mm |
| Water Jet Height | 65 ± 5 mm (independently adjustable) |
| Nozzle Distance to Sample | 12.5 ± 0.5 mm (adjustable) |
| Sample Holder Inner Diameter | 26 mm |
| Water Pump Flow Rate | 200 L/min |
| Cooling Water Temperature | 20 ± 3 °C |
| Spray Time Range | 0 – 99 min (programmable) |
| Compressor Capacity | 1.5 HP |
| Auxiliary Heating Power | 1.0 kW |
| Power Supply | AC 110 V, 60Hz |
| Machine Dimensions (L × W × H) | 1472 × 710 × 1030 mm |
| Weight | 100 kg |
