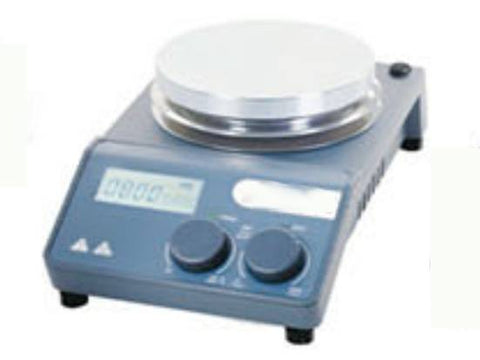

MSE PRO 650W Hotplate Magnetic Stirrer
SKU: BB1186
MSE PRO™ 650W Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer is a compact and efficient laboratory tool designed for high-precision stirring and heating. With a durable 5-inch aluminum work plate, it supports up to 20L stirring capacity. The brushless DC motor ensures stable performance across a 100-1500rpm speed range, displayed on an LCD screen with ±1rpm accuracy. Its 600W heating system delivers precise temperatures up to 340°C with a ±1°C accuracy. Safety features like overheating protection and residual heat warnings make it an essential choice for modern laboratories.
- High Capacity and Compact Design: 5-inch aluminum work plate with a 20L stirring capacity, suitable for a wide range of applications.
- Precise Heating and Temperature Control: 600W heating output with an adjustable range up to 340°C and ±1°C accuracy ensures reliable results.
- Advanced Speed Control: LCD display with ±1rpm accuracy allows fine-tuned control of stirring speeds from 100 to 1500rpm.
- Enhanced Safety Features: Includes overheating protection up to 420°C and a residual heat warning for added safety.
- Customizable and Versatile: Equipped with RS232 interface and optional PT1000 sensor for additional temperature accuracy, making it adaptable for diverse laboratory needs.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1186 |
| Work Plate Size | φ 135mm (5 inch) |
| Work Plate Material | Aluminum |
| Max. Stirring Capacity | 20L |
| Motor Type | Brushless DC motor |
| Motor Input | 18W |
| Motor Output | 10W |
| Speed Range | 100-1500rpm |
| Speed Display | LCD |
| Speed Display Accuracy | ±1rpm |
| Heating Output | 600W |
| Heating Temp. Range | RT-340°C, increment 1°C |
| Control Temp. Accuracy | ±1°C(<100°C) ±1%(>100°C) |
| Overheating Protection | 420°C |
| Temp. Display | LCD |
| Display Temp. Accuracy | ±0.1°C |
| Timing Range | / |
| Optional Accessory | PT1000 (accuracy ±0 2°C) |
| Residual Heat Warning | 50°C |
| Max. Stirrer Bar Length | 80mm |
| Interface | RS232 |
| Protection Type | IP21 |
| Working Environment | 5-40°C, 80%RH |
| Power Consumption | 650W |
| Power Supply | AC110/220V (Customizable) |
| External Size(W*D*H) | 160*280*100 mm |
Optional Accessories:
| SKU#110/220V | Description | |
| BB10498 | BB10523 | Blue carrying plate, use with color quarter pies |
| BB10499 | BB10524 | Blue Fixed ring, use with color quarter pies |
| BB10500 | BB10525 | Red quarter pie, 11 holes, 4 ml reactionvessel, Ø15.2mm,20mm depth, for all MS series models |
| BB10501 | BB10526 | Purple quarter pie, 4 holes, 20 ml reactionvessel, Ø28mm,24mm depth, for all MS series models |
| BB10502 | BB10527 | Blue quarter pie, 4 holes, 30 ml reactionvessel, Ø28mm, 30mm depth, for all MS seriesmodels |
| BB10503 | BB10528 | Black quarter pie, 4 holes, 40 ml reactionvessel, Ø28mm,43mm depth, for all MS series models |
| BB10504 | BB10529 | Green quarter pie, 6 holes, 8ml reactionvessel, Ø17.8mm, 26mm depth, for all MS seriesmodels |
| BB10505 | BB10530 | Golden quarter pie, 4 holes, 16ml reactionvessel, Ø21.6mm, 31.7mm depth, for all MS series models |
| BB10506 | BB10531 | Reaction block for 50ml round bottomflask |
| BB10507 | BB10532 | Reaction block for 100ml round bottomflask |
| BB10508 | BB10533 | Reaction block for 250ml round bottomflask |
| BB10509 | BB10534 | Reaction block for 500ml round bottomflask, |

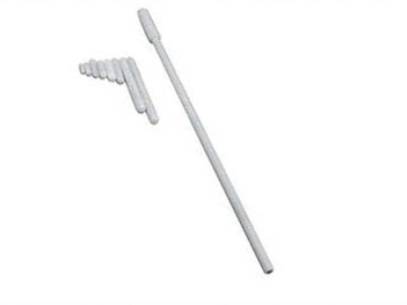

| BB10510 | BB10535 | Stirrer bar 10*6mm, 150℃ |
| BB10511 | BB10536 | Stirrer bar 15*8mm, 150℃ |
| BB10512 | BB10537 | Stirrer bar 20*8mm, 150℃ |
| BB10513 | BB10538 | Stirrer bar 25*8mm, 150℃ |
| BB10514 | BB10539 | Stirrer bar 30*6mm, 150℃ |
| BB10515 | BB10540 | Stirrer bar 40*8mm, 150℃ |
| BB10516 | BB10541 | Stirrer bar 50*8mm, 150℃ |
| BB10517 | BB10542 | Stirrer bar 65*8mm, 150℃ |
| BB10518 | BB10543 | Stirrer bar 80*13mm, 150℃ |

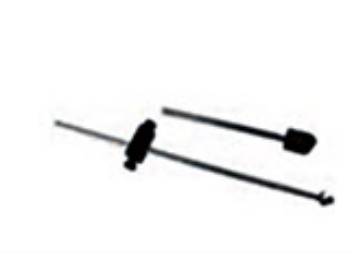

| BB10519 | BB10544 | PT1000-A, temperature sensor for digital hotplatemodels,length of 230mm |
| BB10520 | BB10545 | PT1000-B, temperature sensor with glass coated, lengthof230mm, used or digital hotplate models |
| BB10521 | BB10546 | Support clamp of PT1000 |
| BB10522 | BB10547 | F101 protective cover, for hotplate models, temperatureresistance of 135℃ |
