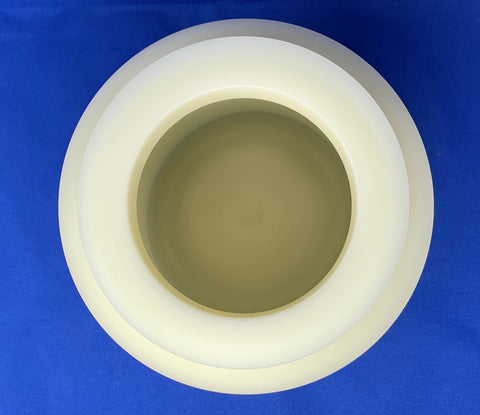

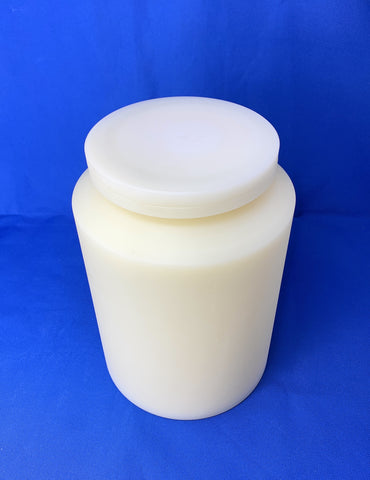

MSE PRO 5L (5,000 ml) Nylon Roller Mill Grinding Jar
Specifications for 5L (5,000 ml) Nylon Roller Mill Jars
- This family of Nylon grinding/milling jars are for roller ball mills.

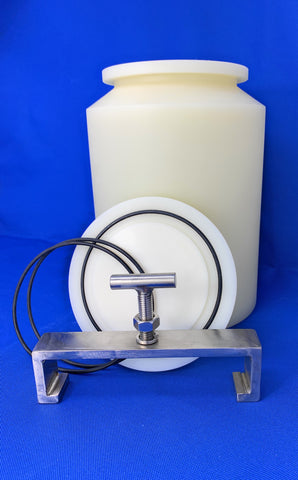

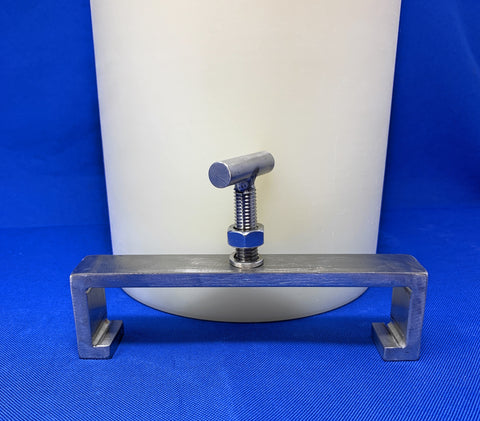

- Each jar set includes grinding jar, jar lid, silicon sealing gasket and a clamp.
- Anti-leak design, easy to clamp and roll.
- Easy to pour and clean
- Low cost to work with. Thick wall allow long lasting milling.
- Net weight: 2.93 kg
- Inner diameter: 173 mm
- Outer diameter: 197 mm
- Inner Depth: 258 mm
- Height (without lid): 270 mm
- Height (including lid): 282 mm
Features of Nylon Roller Mill Jars
- SKU#: JA0420
- Material: PA6 /Nylon /Polymide
- Jar Volume: 5L (5,000 ml)
- Max Loading Capacity: 2/3 capacity of the grinding jar
- Specific Gravity: 1.14 g/cm3
- Abrasion Resistance: very good
- Color: milk white or light yellow
- Tensile Strength: > 60.0 MPa
- Bending Strength: 90.0 MPa
- Melting Point: 216°C
- Attachment: silicon sealing gasket, lid and clamp
- Compatible Grinding Balls: stainless steel balls or zirconium oxide balls (should be ordered separately)
- Suitable for: medium-hard, abrasive samples
