MSE PRO 550W Hotplate Magnetic Stirrer
SKU: BB1188

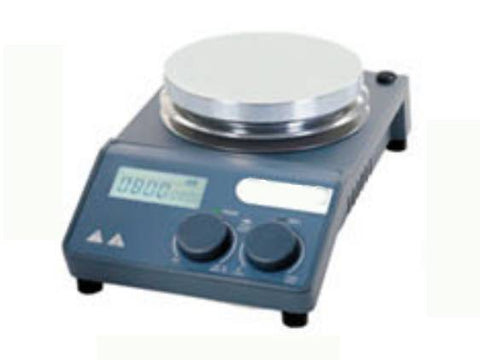

MSE PRO™ 550W Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer is a reliable and advanced laboratory tool, designed for efficient mixing and precise heating applications. Its 5-inch stainless steel work plate with a ceramic coating supports up to 20L stirring capacity, ensuring durability and chemical resistance. Featuring a brushless DC motor, it delivers smooth stirring with speeds adjustable from 100-1500rpm, displayed with ±1rpm accuracy. The 500W heating system provides precise temperature control up to 340°C with ±1°C accuracy, while the LCD display offers real-time monitoring. Safety features like overheating protection and residual heat warnings make it ideal for versatile lab environments.
- Durable Work Plate: Stainless steel with ceramic coating ensures corrosion resistance, easy cleaning, and a long lifespan.
- High Capacity and Precision: Handles up to 20L stirring capacity with speeds adjustable between 100-1500rpm and ±1rpm accuracy for precise control.
- Advanced Heating System: 500W heating output with a temperature range up to 340°C and ±1°C accuracy for consistent results.
- Enhanced Safety Features: Equipped with overheating protection, residual heat warnings, and IP42 protection for safe and reliable operation.
- Customizable and Versatile: Includes RS232 interface and optional PT1000 sensor for enhanced temperature accuracy, adapting to diverse laboratory requirements.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1188 |
| Work Plate Size | φ 135mm (5 inch) |
| Work Plate Material | Stainless steel with ceramic coated |
| Max. Stirring Capacity | 20L |
| Motor Type | Brushless DC motor |
| Motor Input | 18W |
| Motor Output | 10W |
| Speed Range | 100-1500rpm |
| Speed Display | LED |
| Speed Display Accuracy | ±1rpm |
| Heating Output | 500W |
| Heating Temp. Range | RT-340°C, increment 1°C |
| Control Temp. Accuracy | ±1°C(<100°C) ±1%(>100°C) |
| Overheating Protection | 420°C |
| Temp. Display | LCD |
| Display Temp. Accuracy | ±0.1°C |
| Timing Range | 1-99h59min |
| Optional Accessory | PT1000 (accuracy ±0 2°C) |
| Residual Heat Warning | 50°C |
| Max. Stirrer Bar Length | 80mm |
| Interface | RS232 |
| Protection Type | IP42 |
| Working Environment | 5-40°C, 80%RH |
| Power Consumption | 550W |
| Power Supply | AC110/220V (Customizable) |
| External Size(W*D*H) | 160*280*85 mm |
Optional Accessories:
| SKU#110/220V | Description | |

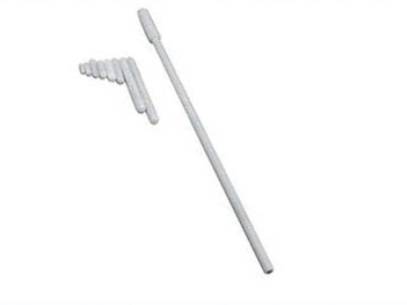

| BB10474 | BB10486 | Stirrer bar 10*6mm, 150℃ |
| BB10475 | BB10487 | Stirrer bar 15*8mm, 150℃ |
| BB10476 | BB10488 | Stirrer bar 20*8mm, 150℃ |
| BB10477 | BB10489 | Stirrer bar 25*8mm, 150℃ |
| BB10478 | BB10490 | Stirrer bar 30*6mm, 150℃ |
| BB10479 | BB10491 | Stirrer bar 40*8mm, 150℃ |
| BB10480 | BB10492 | Stirrer bar 50*8mm, 150℃ |
| BB10481 | BB10493 | Stirrer bar 65*8mm, 150℃ |
| BB10482 | BB10494 | Stirrer bar 80*13mm, 150℃ |

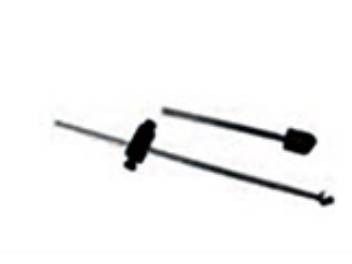

| BB10483 | BB10495 | PT1000-A, temperature sensor for digital hotplatemodels,length of 230mm |
| BB10484 | BB10496 | PT1000-B, temperature sensor with glass coated, lengthof230mm, used for digital hotplate model |
| BB10485 | BB10497 | Support clamp of PT1000 |
