MSE PRO 530W Hotplate Magnetic Stirrer
SKU: BB1190

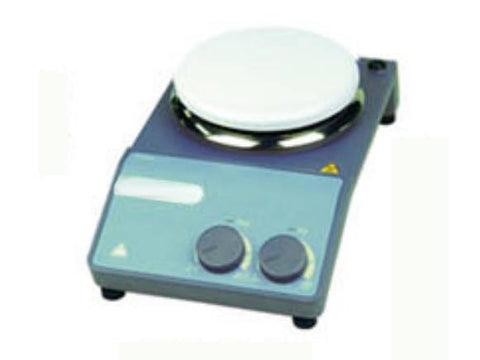

MSE PRO™ 530W Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer is an efficient and robust laboratory instrument designed for precise stirring and heating tasks. Featuring a 5-inch stainless steel work plate with a ceramic coating, it ensures excellent durability and chemical resistance. With a brushless DC motor, the stirrer provides a speed range of 100-1500rpm with ±1rpm accuracy, suitable for a wide range of applications. Its 500W heating system supports temperatures up to 340°C, complemented by overheating protection for safety. Compact and reliable, this stirrer is ideal for modern laboratory needs.
- Durable and Resistant Work Plate: Stainless steel with ceramic coating offers corrosion resistance, easy cleaning, and a long service life.
- High Stirring Capacity: Supports up to 20L stirring capacity with precise speed adjustment from 100-1500rpm and ±1rpm accuracy.
- Powerful Heating System: 500W output with a temperature range up to 340°C for efficient and consistent heating.
- Enhanced Safety: Overheating protection and IP42 protection ensure safe and reliable operation.
- Compact and Energy-Efficient: Lightweight design with low power consumption (530W) and customizable power options for versatile laboratory applications.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1190 |
| Work Plate Size | φ 135mm (5 inch) |
| Work Plate Material | Stainless steel with ceramic coated |
| Max. Stirring Capacity | 20L |
| Motor Type | Brushless DC motor |
| Motor Input | 18W |
| Motor Output | 10W |
| Speed Range | 100-1500rpm |
| Speed Display | Scale |
| Speed Display Accuracy | ±1rpm |
| Heating Output | 500W |
| Heating Temp. Range | RT-340°C |
| Control Temp. Accuracy | / |
| Overheating Protection | 420°C |
| Temp. Display | Scale |
| Display Temp. Accuracy | / |
| Timing Range | / |
| Optional Accessory | / |
| Residual Heat Warning | / |
| Max. Stirrer Bar Length | 80mm |
| Interface | / |
| Protection Type | IP42 |
| Working Environment | 5-40°C, 80%RH |
| Power Consumption | 530W |
| Power Supply | AC110/220V (Customizable) |
| External Size(W*D*H) | 160*280*85 mm |

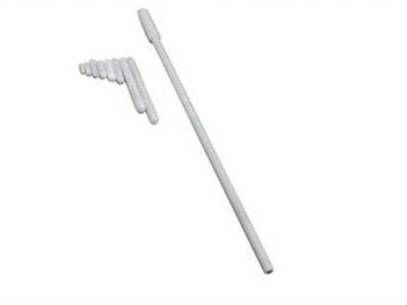

Optional Accessories:
| SKU#110/220V | Description | |
| BB10454 | BB10464 | Stirrer bar 10*6mm, 150℃ |
| BB10455 | BB10465 | Stirrer bar 15*8mm, 150℃ |
| BB10456 | BB10466 | Stirrer bar 20*8mm, 150℃ |
| BB10457 | BB10467 | Stirrer bar 25*8mm, 150℃ |
| BB10458 | BB10468 | Stirrer bar 30*6mm, 150℃ |
| BB10459 | BB10469 | Stirrer bar 40*8mm, 150℃ |
| BB10460 | BB10470 | Stirrer bar 50*8mm, 150℃ |
| BB10461 | BB10471 | Stirrer bar 65*8mm, 150℃ |
| BB10462 | BB10472 | Stirrer bar 80*13mm, 150℃ |
| BB10463 | BB10473 | F101 protective cover, for hotplate models, temperatureresistance of 135℃ |
