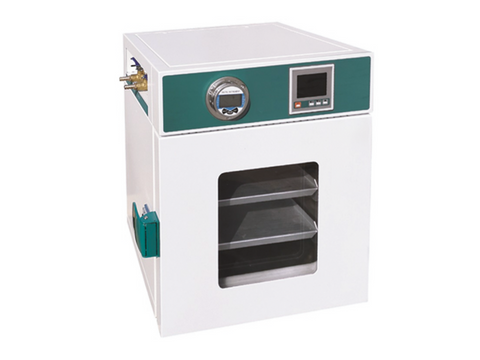

MSE PRO 52L Precision Vacuum Oven
SKU: MA4209
MSE PRO™ 52L Precision Vacuum Oven
The MSE PRO Precision Vacuum Drying Oven is engineered for highly efficient and uniform drying under vacuum conditions. Ideal for heat-sensitive materials, this oven features advanced PID control with high-accuracy sensors and a reliable sealing system. Its explosion-proof glass and multi-layer insulation ensure both performance and safety in demanding laboratory and industrial applications.
- 4-Sides Heating Method – Uniform temperature conduction through shelves ensures enhanced efficiency.
- Advanced Sealing System – Equipped with an inflatable port and one-piece thermostability silica gel sealant strip for excellent airtight performance.
- Explosion-Proof Observation Window – Double-layer design with toughened inner glass and a protective outer resin plate for added safety.
- Smart LCD Controller – Displays multiple data groups, includes PID control with PT100 sensor for precise temperature regulation.
-
High-Accuracy LCD Vacuum Gauge – Displays pressure in multiple units (Mpa, Kpa, bar, Psi, KGF/cm²) with an accuracy class of 0.5.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Drying Ovens. Please contact us for more information.
Specifications:
| SKU# | MA4209 | |
| Circulation Mode | Four walls heat conduction and decompression | |
| Function | Temp. Range | RT+10-250℃ |
|
Useful vacuum degree Range |
<133Pa | |
|
Temp. Resolution Ratio |
0.1℃ | |
| Temp. motion | ±1℃ | |
|
Heating-up time |
100 min | |
| Structure | Inner Chamber | High quality stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Insulation layer | High quality aluminum silicate cotton(with CE certification) | |
| Heater | Stainless steel electric heat tube | |
|
Observation window |
Bullet proof tempered glass | |
| Vacuum meter | LCD display, accuracy class 2.5 | |
| Nozzle diameter | 10mm | |
| Power rating | 1.4kW | |
| Controller | Temp. control mode | Two temperature section PID intelligent |
| Temp. setting mode | Touch button setting | |
| Temp. display mode | LCD Color screen Liquid crystal displays multiple groups of data on one screen | |
| Timer | 0-9999min (with timing wait function) | |
| Operation function | Fixed temperature operation, fixed timing operation, auto stop | |
| Additional function |
Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking power-off parameter memory |
|
| Sensor | PT100 | |
| Safety device | Over Temperature sound-light alarm | |
| Specification | Inner Chamber size(W*L*H) | 415*370*340 mm |
| Exterior size (W*L*H) | 560*540*680 mm | |
| Volume | 52L | |
| Standard Shelf Number | 6 | |
| Load per rack | 15 kg | |
| Shelf space | 140 mm | |
| Current Rating(50/60HZ) | AC220V/6.3A | |
| Net Weight | 67 kg | |
| Accessory | Shelf | 2 |
| Shelf frame | 4 | |
| Optional accessories |
Silicone connecting tube, vacuum pump filter, vacuum pump |
|
