MSE PRO 515W Hotplate Magnetic Stirrer
SKU: BB1192

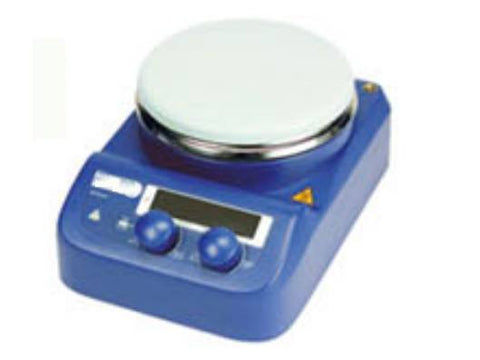

MSE PRO™ 515W Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer is a compact, reliable, and efficient lab instrument tailored for precise stirring and heating needs. It features a 5-inch stainless steel work plate with a ceramic coating for superior durability and chemical resistance. Powered by a brushless DC motor, it offers a speed range of 200-1500rpm with ±1rpm accuracy, making it ideal for handling up to 3L of liquid. The 500W heating system reaches temperatures up to 280°C with ±1°C accuracy. Enhanced with safety features such as overheating protection and residual heat warnings, it is a perfect choice for modern laboratory workflows.
- Durable and Chemical-Resistant Work Plate: Stainless steel with ceramic coating ensures longevity and easy maintenance for demanding laboratory applications.
- Precise Stirring: Supports up to 3L capacity with a speed range of 200-1500rpm, displayed on an LED panel with ±1rpm accuracy for reliable results.
- Efficient Heating System: 500W output with a temperature range of RT-280°C in 1°C increments, offering precise control with ±1°C accuracy.
- Advanced Safety Features: Overheating protection (up to 320°C) and residual heat warning at 50°C ensure user safety during operation.
- Compact and Customizable Design: Lightweight and space-saving (150x260x80mm), with customizable AC110/220V power options for versatility across various laboratory setups.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1192 |
| Work Plate Size | φ 135mm (5 inch) |
| Work Plate Material | Stainless steel with ceramic coated |
| Max. Stirring Capacity | 3L |
| Motor Type | Brushless DC motor |
| Motor Input | 5W |
| Motor Output | 3W |
| Speed Range | 200-1500rpm |
| Speed Display | LED |
| Speed Display Accuracy | ±1rpm |
| Heating Output | 500W |
| Heating Temp. Range | RT-280°C, increment 1°C |
| Control Temp. Accuracy | ±1°C(<100°C) ±1%(>100°C) |
| Overheating Protection | 320°C |
| Temp. Display | LED |
| Display Temp. Accuracy | ±1°C |
| Timing Range | / |
| Optional Accessory | PT1000 (accuracy ±0 5°C) |
| Residual Heat Warning | 50°C |
| Max. Stirrer Bar Length | 50 mm |
| Interface | / |
| Protection Type | IP21 |
| Working Environment | 5-40°C, 80%RH |
| Power Consumption | 515W |
| Power Supply | AC110/220V (Customizable) |
| External Size(W*D*H) | 150*260*80 mm |
Optional Accessories:
| SKU#110/220V | Description | |
| BB1193 | BB1209 | Reaction block for 50ml round bottomflask, |
| BB1194 | BB1210 | Reaction block for 100ml round bottomflask |
| BB1195 | BB1211 | Reaction block for 250ml round bottomflask |
| BB1196 | BB1212 | Reaction block for 500ml round bottomflask, |
| BB1197 | BB1213 | Stirrer bar 10*6mm, 150℃ |
| BB1198 | BB1214 | Stirrer bar 15*8mm, 150℃ |
| BB1199 | BB1215 | Stirrer bar 20*8mm, 150℃ |
| BB1200 | BB1216 | Stirrer bar 25*8mm, 150℃ |
| BB1201 | BB1217 | Stirrer bar 30*6mm, 150℃ |
| BB1202 | BB1218 | Stirrer bar 40*8mm, 150℃ |
| BB1203 | BB1219 | Stirrer bar 50*8mm, 150℃ |

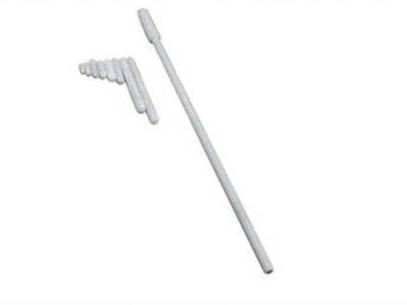

| BB1204 | BB1220 | Magnetic bar remover, Length of 200mm |
| BB1205 | BB1221 | PT1000-A, temperature sensor for digital hotplatemodels,length of 230mm |
| BB1206 | BB1222 | PT1000-B, temperature sensor with glass coated, lengthof230mm, used for digital hotplate models |

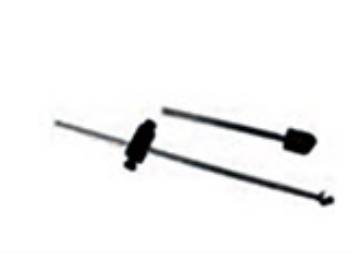

| BB1207 | BB1223 | Support clamp of PT1000 |
