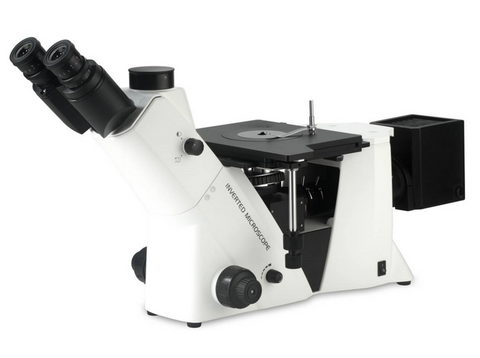

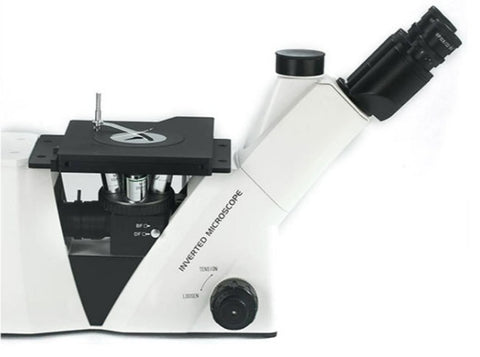

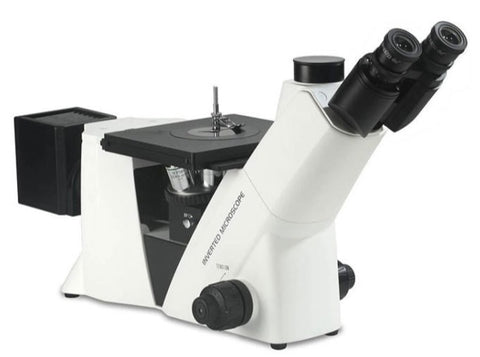

MSE PRO™ 50X-1000X IMM-01 Inverted Metallurgical Microscope

  • £1,62300


MSE PRO™ 50X-1000X IMM-01 Inverted Metallurgical Microscope

MSE Supplies offers an IMM-01 Inverted Metallurgical Microscope. The trinocular design allows a digital camera to be mounted for convenient data acquirement. With super wide field optics eyepiece, a polarizer and analyzer unit, a 5 holes nosepiece, a 50W halogen illuminator, and a three-layer mechanical stage with coaxial coarse & fine focusing, it is ideal for metallurgical studies such as grain boundaries, grain size, etc. and semiconductor studies such as circuits, chips, micro-electronics, etc.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

The price is for standard unit. For different accessories, please contact us.

  • Capable of bright field, dark field, polarizing observation etc.
  • Widely used in metal, mineral, electronic field.
  • Large view field eyepiece, view field up to 22mm for comfortable observation.
  • Large working stage.
  • Light distribution (both): 100:0 (100% for eyepiece);
                                             80:20 (80% for trinocular head and 20% for eyepiece).

Technical Data

  • Packing Size: 660mm×590mm×325mm
  • Gross Weight: 17kg
  • Net Weight: 12.5kg
  • Include one year warranty

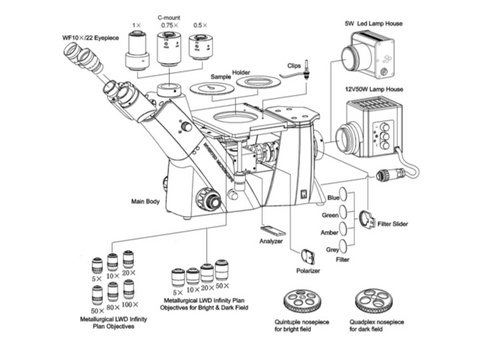

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Item

Specification

IMM-01

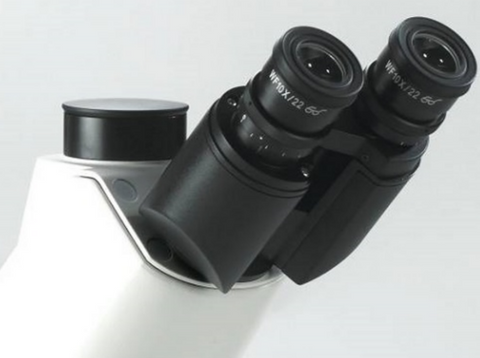

Eyepiece

WF 10×/22mm (adjustable)

WF 10×/22mm (adjustable, reticule 0.1mm)

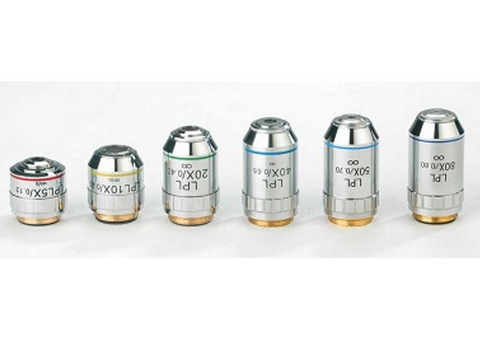

Metallurgical LWD Infinity

Plan Objectives

LMPlan FL 5×/0.15

(Semi Apochromatic Objective)

W.D=21.00mm

LMPlan FL 10×/0.30

(Semi Apochromatic Objective)

W.D.=20.00mm

LMPlan FL 20×/0.40

(Semi Apochromatic Objective)

W.D.=15.00mm

LMPlan FL 50×/0.55

(Semi Apochromatic Objective)

W.D.=10.00mm

LPL 80×/0.80

W.D.=0.85mm

LMPlan FL 100×0.85 (Dry)

(Semi Apochromatic Objective)

W.D.=3.00mm

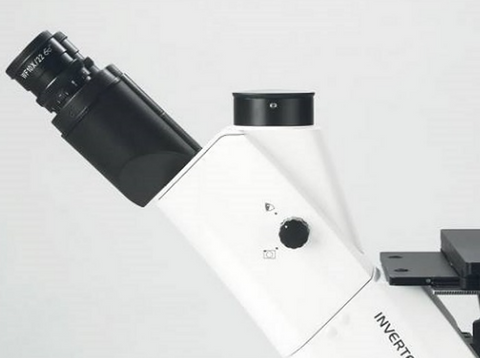

Seidentopf Trinocular Head

  • Inclined: 30°
  • Interpupillary distance: 48-76mm
  • Light distribution (both): 100: 0 (100% for eyepiece) and 80:20 (80% for trinocular head, and 20% for eyepiece)

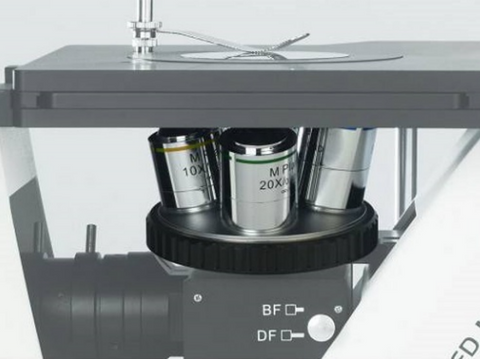

Nosepiece

Quintuple

Quadplex (specially for bright/dark field objectives)

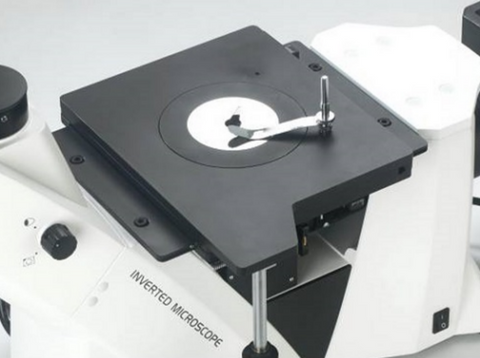

Mechanical Stage

  • Stage size: 210mm×180mm
  • Moving range: 50×50mm
  • Scale: 0.1mm

Coaxial Coarse and Fine Focusing Unit

  • Coarse stroke: 10mm
  • Fine stroke per rotation: 0.2mm
  • Fine division: 2μm

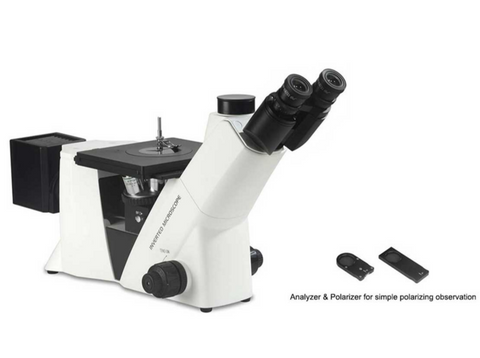

Polarizing Unit

Polarizer/Analyzer

Illumination

12V/50W Halogen (Input voltage: 100V~240V)

5W LED lamp (Input voltage: 100V~240V)

Filter

Blue

Green/ Amber/ Grey

C-mount

1×/0.75×/0.5×C-Mount  (focus adjustable)

Adaptor for Digital Photograph

Use for CANON/NIKON/OLYMPUS etc.
