MSE PRO 3 mm Spherical Premium Yttria Stabilized Zirconia YSZ Milling Media, 1 kg - MSE Supplies LLC

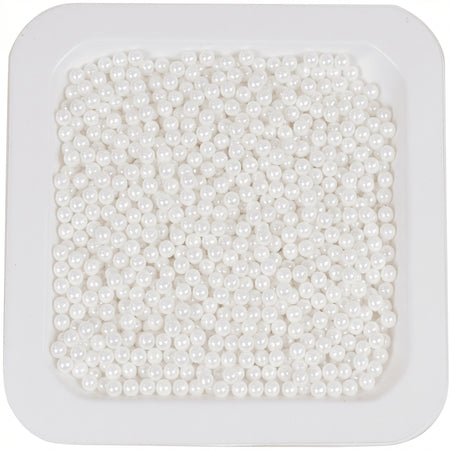

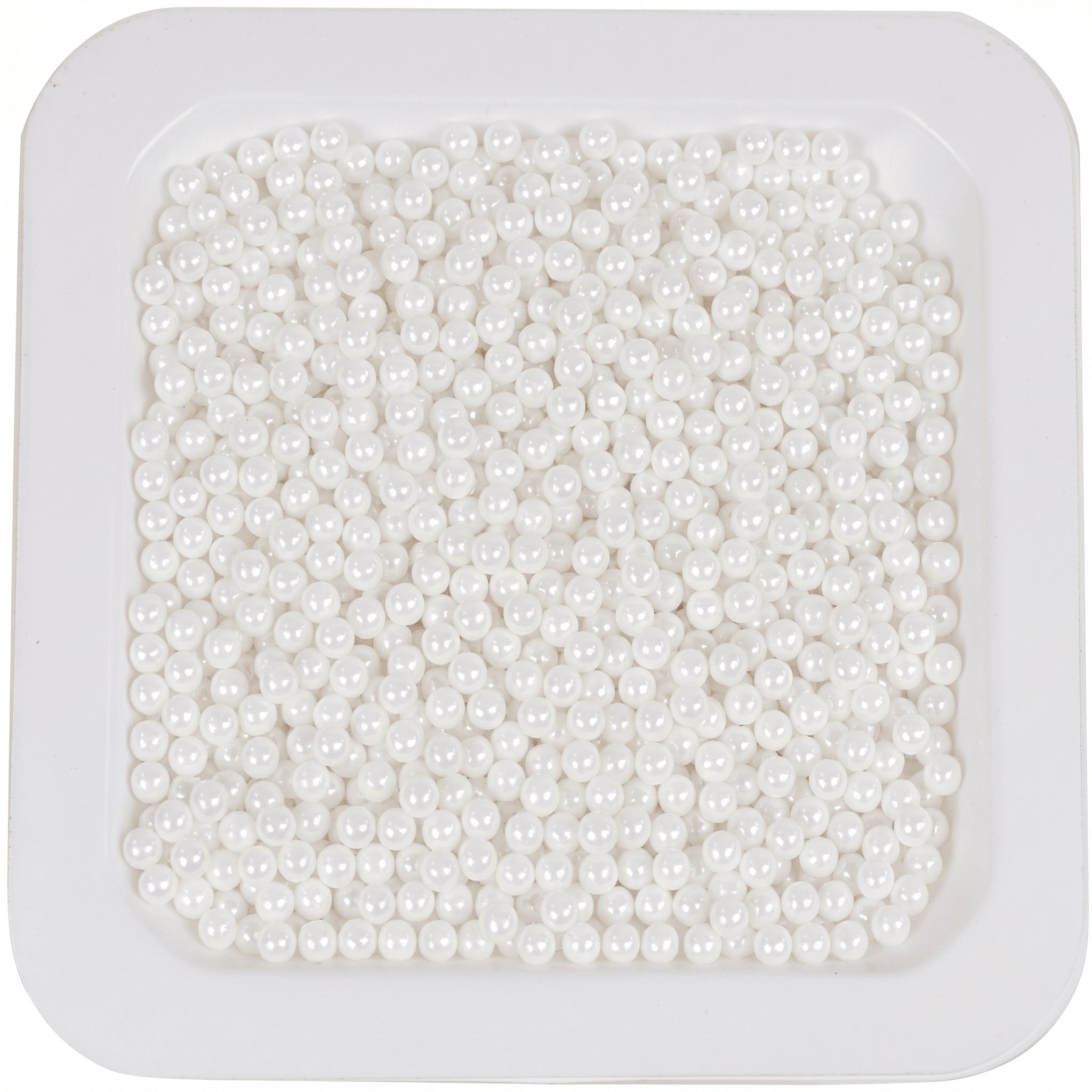

MSE PRO 3 mm Spherical Premium Yttria Stabilized Zirconia YSZ Milling Media, 1 kg

SKU: BA0109

  • £7500
  • Save £1000



Description for 3 mm Yttrium Stabilized Zirconium Oxide Grinding/Milling Media Balls

Composition: 5.25wt%, YSZ

Product Number: BA0109

  • Quantity: 1kg - 3 mm YSZ balls, Approx. 11,800 balls

We sell in tons, please contact us for high volume purchase.

For zirconia micro milling media with less than 2mm diameter YSZ balls, visit the zirconia micro milling media webpage.

Y2O3 Stabilized Zirconia Milling Media

Specifications for 5.25 wt % Y2O3 Stabilized Zirconia Milling Media Specification

Items

Unit

Specification

Composition

wt%

94.7% ZrO2
5.2% Y2O3

Bulk Density

Kg/L

4.6

Specific Density

g/cm3

~ 6.1

Hardness Mohs >9.0
Elastic modulus GPa 200
Thermal Conductivity W/m.K 3
Crushing Load KN ~ 20
Fracture Toughness MPa*m1-2 9
Grain size um 0.5
Thermal expansion
Coefficient (20-400 °C)
1x10 -6 / °C 9.6



Material Specification Spherical Premium Yttria Stabilized Zirconia Milling Media

ZrO2 (+ HfO2) , wt%,

94.7

Y2O3, wt%,

5.2+/-0.25

Al2O3, wt%,

0.25

SiO2, wt%,

0.009

Fe2O3, wt%,

0.002



Features Spherical Premium Yttria Stabilized Zirconia Milling Media

  1. Highly cost-effective, low wear and long lifetime: YSZ milling/grinding material is the most durable and efficient media for ball milling of ceramic materials. Due to its ultra-low wear loss, its operational cost can be lower.
  2. High specific gravity, high efficiency, which saves processing time.
  3. Highly resistant to acid and solvents.
  4. Highly polished, smooth, easy to clean, low abrasion to the equipment.
  5. High mechanical strength, good toughness, impact resistance, no broken beads
  6. Mainly used for lab planetary ball mill machine. Can also be used for attrition mills.
  7. Its virtually contamination-free character makes it an ideal solution for a variety of applications that demand minimal contamination, including, but not limited to, nano materials, pharmaceutical, food, chemical, battery, ink, toner, dielectric, solar cell, semiconductor, etc.
