17-4PH Iron Based Metal Powder for Additive Manufacturing (3D Printing),  MSE Supplies

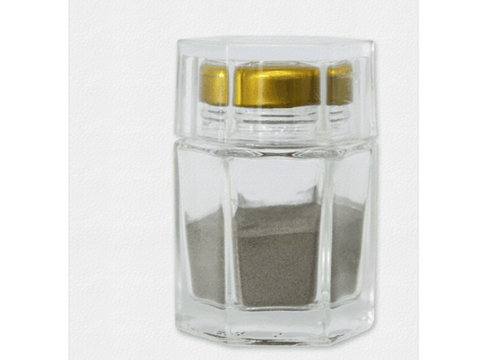

MSE PRO 17-4PH Iron Based Metal Powder for Additive Manufacturing (3D Printing)

  • £8400

Bulk orders? Please contact us for Bulk Quotation.

qty (kg) price ($/kg)
1 - 9 $ 99.00
10 - 99 $ 89.10
100 - 100+ $ 66.33

Product details:

SAE Type 630 stainless steel (more commonly known as 17-4PH) is a grade of martensitic precipitation hardened stainless steel. The name comes from the chemical makeup which is approximately 17% chromium and 4% nickel. 17-4PH can be heat treated to high levels of strength and hardness, and features corrosion resistance and machinability comparable to austenitic 304 stainless. Being martensitic, 17-4PH is magnetic.

Uses for 17-4PH stainless steel include components which require high hardness and/or corrosion resistance at temperatures of up to 600 °F (316 °C). Specific applications for 17-4PH include the petroleum and chemical industries, as well as use in aircraft parts.

Chemical Composition:

Chemical Composition (wt%)

Item

Fe

C

Mn

Si

Ni

Cr

Mo

V

W

Al

17-4PH

Bal

≤0.07

≤1.0

≤1.0

3.0~5.0

15.5~17.5

-

-

-

-

Mg

Cu

Ti

Nb

Zr

P

S

Co





-

3.0~5.0

-

0.15~0.45

-

≤0.04

≤0.03

-





Oxygen≤800 ppm; Nitrogen≤600 ppm

Particle Size (This size is D50):

<45μm, <53μm, 15-45μm, 15-53μm, 45-150μm. (A variety of particle size metal powder can be customized upon request)

Applications:

Powder can be used in laser/electron beam additive manufacturing (SLM/EBM), powder metallurgy (PM), spraying and other processes. Iron-based metal powder is widely used in 3D printing thin-walled devices and complex parts, hot and cold spraying, laser cladding, and biomedical fields.

Applicable Equipment:

Powder can be used in various types of metal 3D printers, including Renishaw from the UK, EOS (EOSINT M series) from Germany, Concept Laser, 3D systems from the United States and many other laser melting equipment.

Minimum Order Quantity:

1kg

Note:

The metal powder price varies due to the particle size range and the raw material price.
