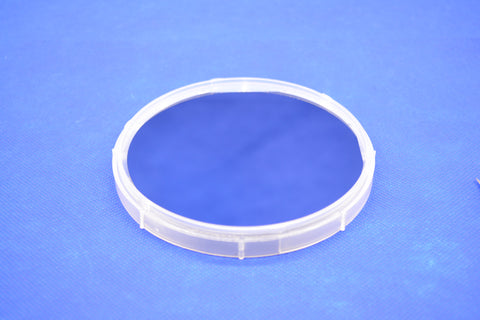

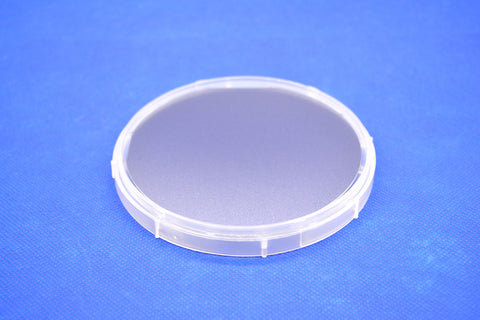

MSE PRO 150 mm P Type (B-doped) Prime Grade Silicon Wafer <100>, SSP, 10~20 ohm-cm

SKU: WA0811

  • £5300
  • Save £600



150 mm P Type (B-doped) SEMI Standard Prime Grade Silicon Wafer <100>, 10~20 ohm-cm, Single Side Polished, 6 inch Si Wafer

Product SKU#: WA0811

Product Specifications

  • Material: Single Crystal Silicon Wafer
  • Growth Method: CZ
  • Orientation: <100>  +/- 0.5 deg
  • Diameter: 150 mm +/- 0.2 mm
  • Thickness: 675 um +/- 25 um (SSP)
  • Primary Flat Orientation: <110> +/- 1 deg
  • Primary Flat Length: 57.5 +/- 2.5 mm
  • Type/ Dopant: P/ Boron
  • Electrical Resistivity: 10~20 ohm-cm
  • RRV: ≤ 10%
  • Particles:  ≤ 20 @ 0.3 um
  • Oxygen Content: 6~21 ppm
  • Carbon Content: ≤ 0.5 ppm
  • GBIR/ TTV: ≤ 5 um
  • WARP: 30 um
  • BOW: +/- 30 um
  • Front Surface: CMP Polished, Ra < 0.5 nm (single side polished, SSP)
  • Package: Packaged in a class 100 clean room environment, in cassettes of 25 pcs under vacuum or in single wafer containers.

Please contact us if you have bulk orders or need customization.
