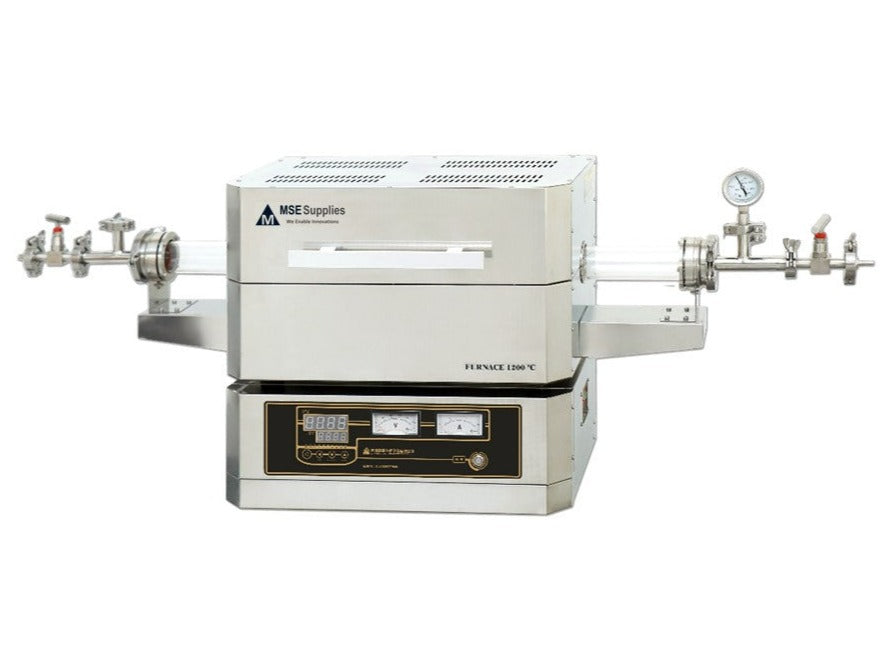

MSE PRO 1200°C Three Temperature Zone Tube Furnace T 100/655/12
SKU: MA0470
MSE Supplies offers a Three Temperature Zone Tube Furnace T 100/655/12 with maximum working temperature of 1100°C and heating region of Ø100x655mm. Tube furnaces provide users with vacuum/controlled atmosphere and high temperature. It is widely used for many processes, including heat treatment of metal in different atmospheres, catalyst formation that need inert gas protection, etc. Fields of application include semiconductor, nanotechnology and carbon fiber, etc.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
- High heating rate
- Uniform temperature distribution
- Easy-to-operate
- With PID adjustment, fuzzy control, and self-tuning functions
- Programmable controller with 50 segments
- Over-temperature protection and electric shock protection
- Can be connected to a laptop for remote control, real-time tracking, history recording and data output (available upon request)
Technical Data:
Model | T 100/655/12 |
SKU# |
Regular Control Panel (MA0470) Touch Screen Control Panel (MA0471) |
Maximum Temperature | 1200℃ |
Working Temperature | ≤1100℃ |
Heating Zone | Three Temperature Zone |
Furnace Tube Material | Quartz Tube |
Quartz Tube Dimension | φ100/92*1200mm |
Heating Zone Length | 655mm |
Constant Temperature Zone Length | 500mm |
Voltage | 380V Three Phase, plug is not included |
Power | 4.8kW |
Furnace Body Dimension | 360*815*565mm |
Furnace Body Material | Carbon steel with coating |
Weight | 95kg |
Heating Elements | High Resistance Electrothermal Alloy Wire OCr27A17Mo2 |
(Recommended) Heating Rate | 0℃-1000℃≦10℃/min; 1000℃-1200℃≦5℃/min |
Flange Structure | Double-ring Sealing Clamp for Quick Connection |
Temperature Control Accuracy | ±1℃ |
Temperature Control | Programmable temperature control system with 50 segments |
Warranty | One-year limited warranty with lifetime support. Not responsible for damage caused by improper use |
Standard Configuration | A set of gas circuit assembly (including a vacuum pressure gauge), a quartz tube, two quartz plugs, a quartz boat, a hook and a pair of heat-resistant gloves |
We offer Tube Furnaces and Box Furnaces with different sizes and Tmax. For more information, please contact us.
