MSE PRO 1200°C Mini Rotary Furnace

SKU: MA0537-1

  • $ 7,94995
  • Save $ 88100

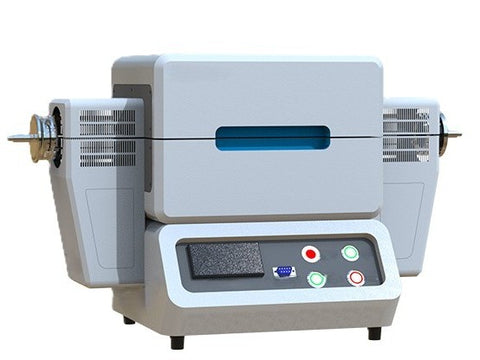

MSEMSE PRO™ 1200°C Mini Rotary Furnace

The MSE PRO™ 1200°C Mini Rotary Furnace is a compact single-zone rotary furnace featuring a double-layer shell with an integrated air-cooling system. The quartz tube is motor-driven to rotate at a low, stable speed, ensuring smooth operation. The specially shaped design of the quartz tube includes internally welded lifting baffles, allowing for more thorough and uniform powder sintering.

Brand: MSE PRO™

Manufacturer: MSE Supplies LLC

Technical Specifications:

Model MA0537
Power Supplies 220V/60Hz
Maximum temperature 1200℃
Rated temperature 1100 ℃
Operating pressure Negative pressure - atmospheric pressure
Heating rate 0-20 ℃/min
Control precision ±1 ℃
Recommended heating rate 0-10 ℃
Thermocouple K-Type
Size of furnace tube Φ25/50*600 mm (custom tube dimensions available upon request)
Size of furnace chamber Φ80*200 mm
Heating zone length 220 mm
Constant temperature zone length 80 mm
Heating element Iron-Chromium-Aluminum alloy HRE
Rated power 1.5kW
Outline dimension 340*300*380 mm
Weight 20 kg

We offer Compact Tube Furnaces with different sizes and Tmax . For more information, please contact us.
