MSE PRO 1200°C Horizontal Mini Tube Furnace
SKU: MA0454-1

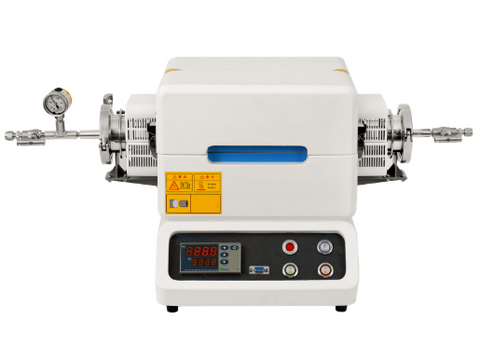

MSE PRO™ 1200°C Horizontal Mini Tube Furnace
The MSE PRO™ 1200°C Horizontal Mini Tube Furnace features an advanced intelligent temperature control system, supporting up to 30 programmable heating and cooling curves with a temperature control accuracy of ±1°C. The furnace chamber is constructed from alumina polycrystalline fiber, offering excellent thermal insulation. Its double-layer housing, combined with an integrated air-cooling system, ensures the exterior surface temperature remains below 60°C, enabling safe operation under various atmospheric conditions. This furnace is ideal for a wide range of applications, including atmosphere sintering, reduction, and vacuum annealing in both research and industrial environments.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
Main Features:
-
Fast heating, low surface temperature, and energy-efficient design
-
Equipped with over-temperature and power failure protection systems
Technical Specification:
| Model | MA0454 |
| Maximum temperature | 1200 °C (short-term) |
| Rated temperature | 1100 °C |
| Heating rate | 10 °C/min |
| Operating pressure |
Negative pressure - slightly positive pressure |
| Temperature control precision | ±1 °C |
| Size of fabricated furnace tube | Φ30*500 mm (maximum: Φ50 mm) |
| Size of furnace chamber | Φ80*220 mm |
| Heating zone length | 220 mm |
| Constant temperature zone length | 60-80 mm |
| Heating element | Iron-Chromium-Aluminum alloy HRE |
| Rated power | 1.5 kW |
| Adaptive power | AC220V, 60 HZ |
| Outline dimension | 340*320*380 mm |
| Weight | 16 kg |
We offer Economy Compact Tube Furnaces with different sizes and Tmax . For more information, please contact us.
