MSE PRO 1050W Hotplate Magnetic Stirrer
SKU: BB1182

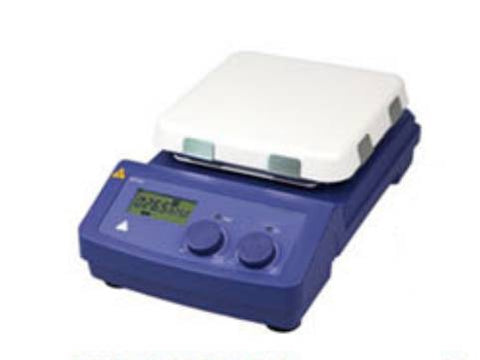

MSE PRO™ 1050W Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer combines precision and durability for demanding laboratory applications. With a 7-inch glass ceramic work plate, it supports up to 20L stirring capacity. Its brushless DC motor ensures stable and quiet operation with a speed range of 100-1500rpm, displayed on an LCD with ±1rpm accuracy. The 1000W heating system delivers precise temperatures up to 550°C with a ±0.1°C display accuracy. Featuring overheating protection, RS232 connectivity, and customizable power options, this stirrer is ideal for modern laboratory needs.
- High Capacity and Performance: Handles up to 20L stirring capacity with a robust 1000W heating system, suitable for large-scale lab work.
- Precision Controls: Offers ±0.1°C temperature display accuracy and ±1rpm speed accuracy for reliable and consistent results.
- Durable Construction: Features a glass ceramic work plate resistant to chemicals and heat for extended durability.
- Advanced Safety Features: Equipped with overheating protection (up to 580°C) and a residual heat warning system for user safety.
- Smart Connectivity: RS232 interface enables seamless integration with data systems, enhancing operational efficiency.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1182 |
| Work Plate Size | 184*184mm ((7 inch) |
| Work Plate Material | Glass ceramic |
| Max. Stirring Capacity | 20L |
| Motor Type | Brushless DC motor |
| Motor Input | 18W |
| Motor Output | 10W |
| Speed Range | 100-1500rpm |
| Speed Display | LCD |
| Speed Display Accuracy | ±1rpm |
| Heating Output | 1000W |
| Heating Temp. Range | RT-550°C, increment 1°C |
| Control Temp. Accuracy | ±1°C(<100°C) ±1%(>100°C) |
| Overheating Protection | 580°C |
| Temp. Display | LCD |
| Display Temp. Accuracy | ±0.1°C |
| Timing Range | / |
| Optional Accessory | PT1000 (accuracy ±0 2°C) |
| Residual Heat Warning | 50°C |
| Max. Stirrer Bar Length | 80mm |
| Interface | RS232 |
| Protection Type | IP21 |
| Working Environment | 5-40°C, 80%RH |
| Power Consumption | 1050W |
| Power Supply | AC110/220V (Customizable) |
| External Size(W*D*H) | 215*360*112 mm |
Optional Accessories:
| SKU#110/220V | Description | |
| BB10584 | BB10602 | Red quarter pie, 11 holes, 4 ml reactionvessel, Ø15.2mm,20mm depth, for all MS series models |
| BB10585 | BB10603 | Purple quarter pie, 4 holes, 20 ml reactionvessel, Ø28mm,24mm depth, for all MS series models |
| BB10586 | BB10604 | Blue quarter pie, 4 holes, 30 ml reactionvessel, Ø28mm, 30mm depth, for all MS seriesmodels |
| BB10587 | BB10605 | Black quarter pie, 4 holes, 40 ml reactionvessel, Ø28mm,43mm depth, for all MS series models |
| BB10588 | BB10606 | Green quarter pie, 6 holes, 8ml reactionvessel, Ø17.8mm, 26mm depth, for all MS seriesmodels |
| BB10589 | BB10607 | Golden quarter pie, 4 holes, 16ml reactionvessel, Ø21.6mm, 31.7mm depth, for all MS series models |

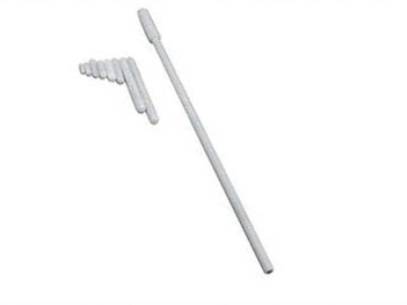

| BB10590 | BB10608 | Stirrer bar 10*6mm, 150℃ |
| BB10591 | BB10609 | Stirrer bar 15*8mm, 150℃ |
| BB10592 | BB10610 | Stirrer bar 20*8mm, 150℃ |
| BB10593 | BB10611 | Stirrer bar 25*8mm, 150℃ |
| BB10594 | BB10612 | Stirrer bar 30*6mm, 150℃ |
| BB10595 | BB10613 | Stirrer bar 40*8mm, 150℃ |
| BB10596 | BB10614 | Stirrer bar 50*8mm, 150℃ |
| BB10597 | BB10615 | Stirrer bar 65*8mm, 150℃ |
| BB10598 | BB10616 | Stirrer bar 80*13mm, 150℃ |

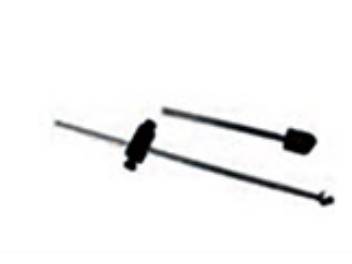

| BB10599 | BB10617 | PT1000-A, temperature sensor for digital hotplatemodels,length of 230mm |
| BB10600 | BB10618 | PT1000-B, temperature sensor with glass coated, lengthof230mm, used or digital hotplate models |
| BB10601 | BB10619 | Support clamp of PT1000 |
