MSE PRO 1030W Hotplate Magnetic Stirrer
SKU: BB1184
MSE PRO™ 1030W Hotplate Magnetic Stirrer
The MSE PRO™ Hotplate Magnetic Stirrer combines precision and durability for demanding laboratory applications. With a 7-inch glass ceramic work plate, it supports up to 10L stirring capacity. Its Shaded pole motor ensures stable and quiet operation with a speed range of 0-1500rpm, displayed on an Scale. The 1000W heating system delivers precise temperatures up to 550°C with a ±1°C display accuracy. Featuring overheating protection and customizable power options, this stirrer is ideal for modern laboratory needs.
- High Capacity and Versatility: Supports up to 10L stirring capacity, making it suitable for a wide range of laboratory applications.
- Efficient Heating System: Delivers precise temperatures up to 550°C with a powerful 1000W heating output and ±1°C accuracy.
- Quiet and Stable Operation: Equipped with a shaded pole motor for smooth, stable, and noise-free stirring at speeds ranging from 0 to 1500rpm.
- Advanced Safety Features: Overheating protection ensures user safety during extended use in demanding lab environments.
- Customizable Power Options: Offers flexible power configurations to meet specific laboratory requirements.
Brand: MSE PRO™
Manufacturer: MSE Supplies LLC
MSE Supplies offers a variety of Hotplate Magnetic Stirrers. Please contact us for more information.
Specifications:
| SKU# | BB1184 |
| Work Plate Size | 184*184mm ((7 inch) |
| Work Plate Material | Glass ceramic |
| Max. Stirring Capacity | 10L |
| Motor Type | Shaded pole motor |
| Motor Input | 15W |
| Motor Output | 1.5W |
| Speed Range | 0-1500rpm |
| Speed Display | Scale |
| Speed Display Accuracy | / |
| Heating Output | 1000W |
| Heating Temp. Range | RT-550°C, increment 5°C |
| Control Temp. Accuracy | ±10°C |
| Overheating Protection | 580°C |
| Temp. Display | LCD |
| Display Temp. Accuracy | ±1°C |
| Timing Range | / |
| Optional Accessory | PT1000 (accuracy ±0 2°C) |
| Residual Heat Warning | 50°C |
| Max. Stirrer Bar Length | 80mm |
| Interface | / |
| Protection Type | IP21 |
| Working Environment | 5-40°C, 80%RH |
| Power Consumption | 1030W |
| Power Supply | AC110/220V (Customizable) |
| External Size(W*D*H) | 215*360*112 mm |
Optional Accessories:
| SKU#110/220V | Description | |
| BB10548 | BB10566 | Red quarter pie, 11 holes, 4 ml reactionvessel, Ø15.2mm,20mm depth, for all MS series models |
| BB10549 | BB10567 | Purple quarter pie, 4 holes, 20 ml reactionvessel, Ø28mm,24mm depth, for all MS series models |
| BB10550 | BB10568 | Blue quarter pie, 4 holes, 30 ml reactionvessel, Ø28mm, 30mm depth, for all MS seriesmodels |
| BB10551 | BB10569 | Black quarter pie, 4 holes, 40 ml reactionvessel, Ø28mm,43mm depth, for all MS series models |
| BB10552 | BB10570 | Green quarter pie, 6 holes, 8ml reactionvessel, Ø17.8mm, 26mm depth, for all MS seriesmodels |
| BB10553 | BB10571 | Golden quarter pie, 4 holes, 16ml reactionvessel, Ø21.6mm, 31.7mm depth, for all MS series models |

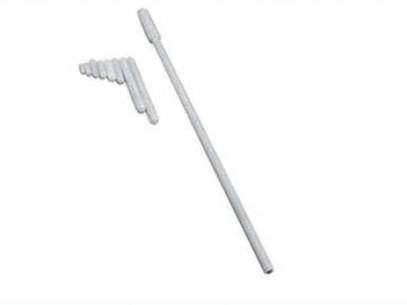

| BB10554 | BB10572 | Stirrer bar 10*6mm, 150℃ |
| BB10555 | BB10573 | Stirrer bar 15*8mm, 150℃ |
| BB10556 | BB10574 | Stirrer bar 20*8mm, 150℃ |
| BB10557 | BB10575 | Stirrer bar 25*8mm, 150℃ |
| BB10558 | BB10576 | Stirrer bar 30*6mm, 150℃ |
| BB10559 | BB10577 | Stirrer bar 40*8mm, 150℃ |
| BB10560 | BB10578 | Stirrer bar 50*8mm, 150℃ |
| BB10561 | BB10579 | Stirrer bar 65*8mm, 150℃ |
| BB10562 | BB10580 | Stirrer bar 80*13mm, 150℃ |

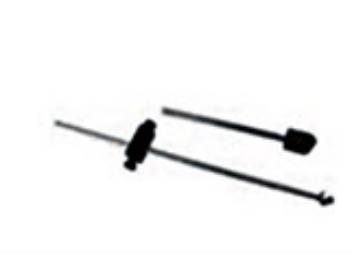

| BB10563 | BB10581 | PT1000-A, temperature sensor for digital hotplatemodels,length of 230mm |
| BB10564 | BB10582 | PT1000-B, temperature sensor with glass coated, lengthof230mm, used or digital hotplate models |
| BB10565 | BB10583 | Support clamp of PT1000 |
