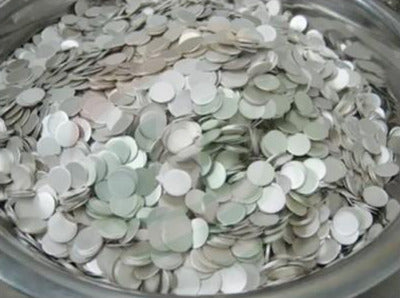

MSE PRO 100g Battery Grade Lithium Chips 15.6 mm Diameter and 0.45 mm Thick for Battery Research
100g battery grade lithium chips with 15.6 mm Diameter and 0.45 mm Thick for battery research. These lithium chips are widely used in Li ion and Li-Metal battery research. Lithium is very reactive in air. Never open the can in air. Can with lithium chips must be opened inside a glove box with Argon Gas and moisture less than 2%RH.
Coin cell lithium chips dimension choice guide:
The diameter and thickness of lithium chips can be customized upon request. The diameter can be customized to be 6~25 mm while thickness can be 0.1~4 mm.
Lithium chips with 15.6 mm Diameter and 0.45 mm are popular for CR20XX coin cells, especially for CR2016 coin cells.
The diameter of lithium chip usually is larger than active electrode diameter and smaller than separator diameter. The thickness depends on the coin cell thickness and whether spacer and springs are used. The common size is listed below:
Shipping and handling: This material is classified as a hazmat and requires special packaging and shipping to comply with regulatory requirements. Please contact us for specific details with shipping and handling.
|Pack Size||100 g per bottle|
Lithium (99.9% purity)
|15.6 mm X 0.45 mm or customized|
Keep in Ar filled glove box
Due to the nature of the material, please inspect the product upon arrival. MSE Supplies will be only responsible for the manufacturing defects only after 1 week past delivery. It is normal to see black spots on the chips. You can use a nylon brush/stainless steel scalpel to clean the surface.
The product was manufactured in dry room. It may contain some residual oxygen which can cause the temporary oxygen level increase when opened in glove box.
1. Interconnected Silicon Hollow Nanospheres for Lithium-Ion Battery Anodes with Long Cycle Life, Nano Lett. 2011, 11, 7, 2949–2954
2. Graphene-modified LiFePO4 cathode for lithium ion battery beyond theoretical capacity, Nat. Commun 4, 1687 (2013).
