MSE PRO 100 pcs of Stainless Steel 304SS CR2016 Coin Cell Cases for Battery Research
Product Details:
The name of CR2016 is defined by International standard IEC 60086. The first letter, C, identifies the chemical composition “lithium” and a nominal voltage (3V) of battery. The second letter, R, indicates a round (cylindrical) form. The first two digits encode the outer diameter of battery in mm. The last two digits are the overall height of battery in tenths of mm. Therefore, CR2016 stands for “lithium, 20 mm diameter, 1.6 mm height”. Its thickness is half of CR2032.

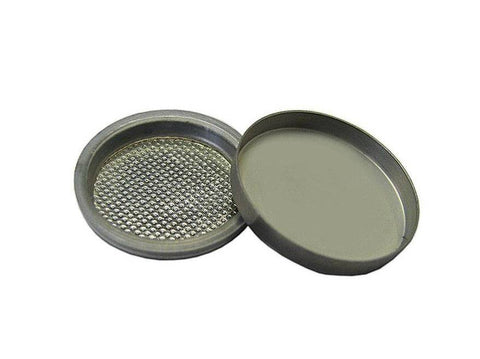

This product includes both anode and cathode cases. These CR2016 coin cell cases are made of stainless steel (304SS) with sealing O-ring (PP). 304SS has a good anti-corrosive resistance to the electrolyte.
|
Specifications |
|
| Product SKU# | BR0106 |
| Pack Size | 100 pcs per pack |
|
Material |
Grade 304 stainless steel (304SS) |
|
Overall Dimensions |
CR2016 20mm x 1.6mm |
|
Case Dimension |
Cathode: O.D. = 20.0mm, I.D. = 19.4mm |
|
Weight |
0.1 oz (2.0 grams) each |
|
Sealing Gasket |
Polypropylene |
